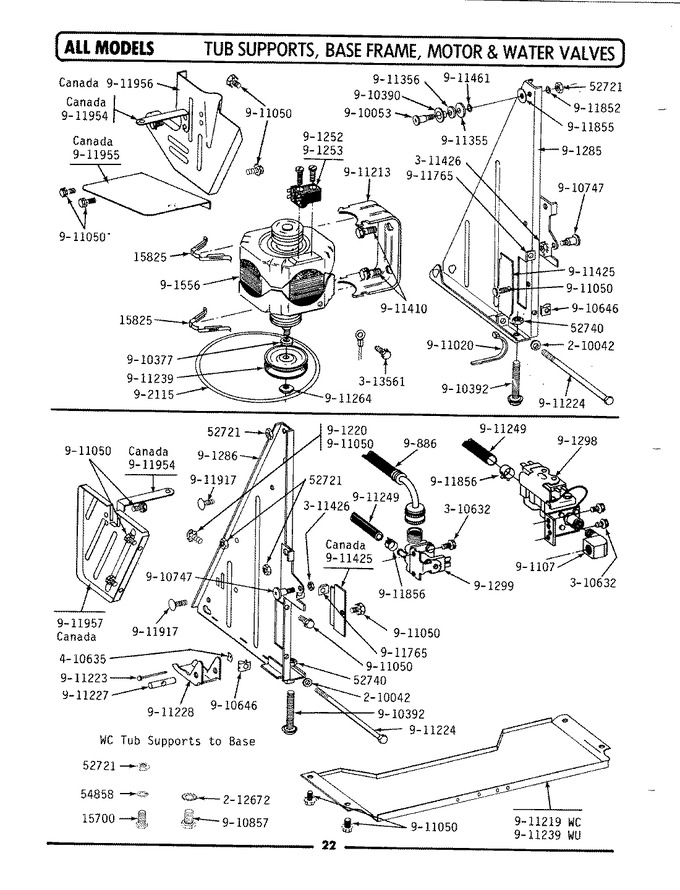

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY015825 | Clip, Motor (Replaces: Y015825) | 00 |
|
$ 21.03 | ||||
| 2 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 3 | 210042 | Washer | 00 |
|
- | ||||
| 4 | 251193 | Screw | 00 |
|
- | ||||
| 5 | Y310632 | Screw | 00 |
|
- | ||||
| 6 | WP3400029 | Nut, Washered Lock (Replaces: Y311426) | 00 |
|
Immediately | $ 6.98 | |||
| 7 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 8 | 901107 | Street Elbow W/sealing Tape | 00 |
|
- | ||||
| 9 | 901220 | Wire, Ground | 00 |
|
- | ||||
| 10 | 901252 | Motor External Start Switch | 00 |
|
- | ||||
| 11 | 901253 | Motor External Start Switch | 00 |
|
- | ||||
| 12 | 901283 | Timer | 00 |
|
- | ||||
| 13 | 901285 | Support Assembly, Right-han | 00 |
|
- | ||||
| 14 | 901286 | Support Assembly, Left-hand | 00 |
|
- | ||||
| 15 | 901298 | Water Valve-wu Models | 00 |
|
$ 96.60 | ||||
| 16 | 901523 | Timer Motor, Rapid Advance | 00 |
|
- | ||||
| 17 | 901556 | Motor | 00 |
|
- | ||||
| 18 | 901586 | Top Spray Hose W/coupling | 00 |
|
- | ||||
| 19 | 901829 | Timer Motor | 00 |
|
- | ||||
| 20 | 6-9021150 | Belt With Lubricant (Replaces: 902115) | 00 |
|
Immediately | $ 62.87 | |||
| 21 | 910053 | Shaft, Rack Roller | 00 |
|
- | ||||
| 22 | 910377 | Washer | 00 |
|
- | ||||
| 23 | 910390 | Roller | 00 |
|
- | ||||
| 24 | WP233550 | Leg, Adjustable (Replaces: 910392) | 00 |
|
$ 7.16 | ||||
| 25 | 910646 | Fastener | 00 |
|
- | ||||
| 26 | 910747 | Hinge Pin | 00 |
|
- | ||||
| 27 | 911020 | Cable Strap | 00 |
|
- | ||||
| 28 | WP4312464 | Screw (Replaces: 911050) | 00 |
|
$ 6.26 | ||||
| 29 | 911213 | Motor Support | 00 |
|
- | ||||
| 30 | 911223 | Pin For Adjustable Leg | 00 |
|
- | ||||
| 31 | 911224 | Screw For Adjustable Leg----na | 00 |
|
- | ||||
| 32 | 911227 | Nut For Adjustable Leg | 00 |
|
- | ||||
| 33 | 911228 | Shoe For Adjustable Leg | 00 |
|
- | ||||
| 34 | 911231 | Base, Frame | 00 |
|
- | ||||
| 35 | 911239 | Pulley For Motor And Pump | 00 |
|
- | ||||
| 36 | 911249 | Injector Hose | 00 |
|
- | ||||
| 37 | Y911264 | Hex Nut, Pulley To Shaft | 00 |
|
- | ||||
| 38 | Y911355 | Cushion Washer | 00 |
|
- | ||||
| 39 | 911356 | Washer | 00 |
|
- | ||||
| 40 | 911410 | Screw, Motor Bracket | 00 |
|
- | ||||
| 41 | 911425 | Spring Access Cover | 00 |
|
- | ||||
| 42 | 911461 | Washer | 00 |
|
- | ||||
| 43 | 911503 | Bracket Timer | 00 |
|
- | ||||
| 44 | 911504 | Barrier | 00 |
|
- | ||||
| 45 | 911660 | Label | 00 |
|
- | ||||
| 46 | 911765 | U Type Fastener | 00 |
|
- | ||||
| 47 | 911852 | Washer, Lock (brace) | 00 |
|
- | ||||
| 48 | 911855 | Washer | 00 |
|
- | ||||
| 49 | WP596669 | Clamp, Spring (Replaces: 911856) | 00 |
|
Immediately | $ 7.56 | |||
| 50 | 911917 | Fastener, Insulation | 00 |
|
- | ||||
| 51 | 911954 | Bracket For Enclosure-canad | 00 |
|
- | ||||
| 52 | 911955 | Wire Protector Pan - Canada | 00 |
|
- | ||||
| 53 | 911956 | Blower Side Enclosure-canad | 00 |
|
- | ||||
| 54 | 911957 | Valve Side Enclosure-canada | 00 |
|
- |
