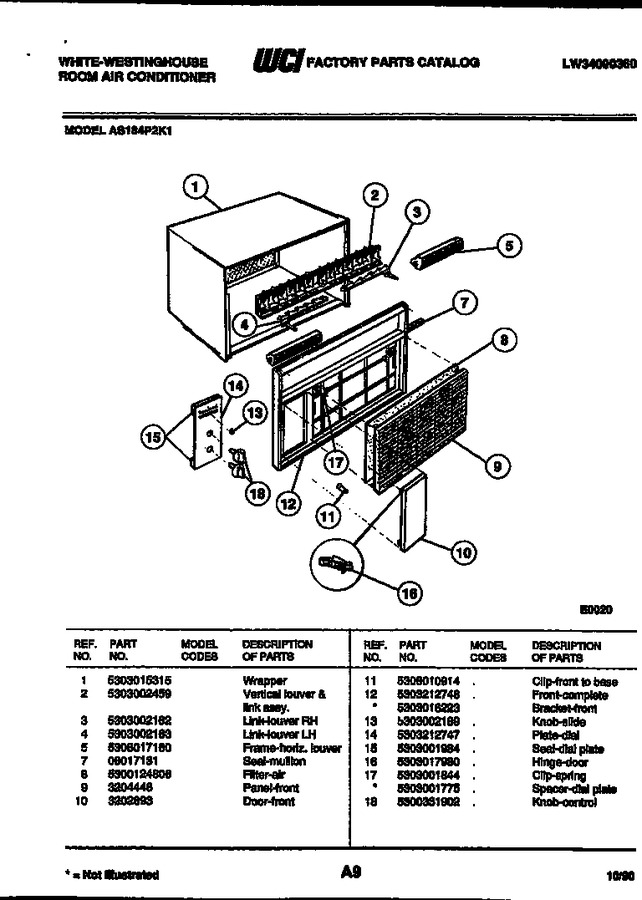

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303002459 | Vertical Louver & Link Assy |
|
- | |||||
| 3 | 5303002162 | Link-louver Rh |
|
- | |||||
| 4 | 5303002163 | Link-louver Lh |
|
- | |||||
| 5 | 5308017160 | Frame-horiz. Louver |
|
- | |||||
| 7 | 08017131 | Seal-mullion |
|
- | |||||
| 8 | 5300124806 | Filter-air |
|
- | |||||
| 9 | 3204446 | Panel-front |
|
- | |||||
| 10 | 3202693 | Door-front |
|
- | |||||
| 11 | 5308010914 | Clip-front To Base |
|
- | |||||
| 12 | 5303212748 | Front-complete |
|
- | |||||
| 13 | 5303002189 | Knob-slide |
|
- | |||||
| 14 | 5303212747 | Plate-dial |
|
- | |||||
| 15 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 16 | 5303017980 | Hinge - Door |
|
- | |||||
| 17 | 5303001844 | Clip-spring |
|
- | |||||
| 18 | 5300331902 | Knob Control |
|
- | |||||
| 12A | 5303016223 | Bracket-front (non-illustrated) |
|
- | |||||
| 17A | 5303001775 | Spacer-dial Plate (non-illustrated) |
|
- |
