SELECT A DIAGRAM

01 - 240 Volt, 50hz Parts


02 - Blower/air Inlet & Water Level Float

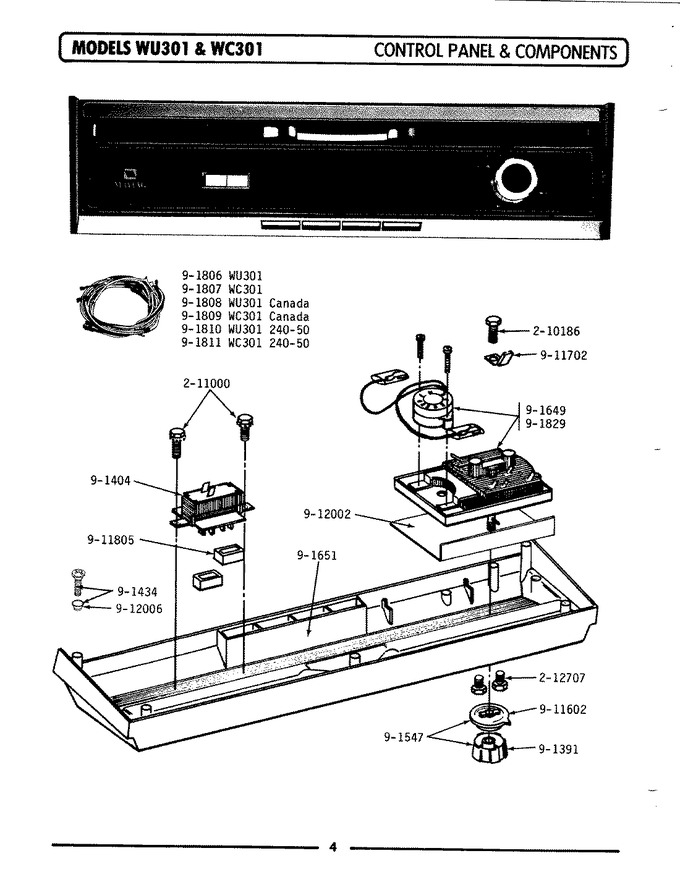

03 - Control Panel & Components


04 - Door Assembly


05 - Front Panel & Access Panel (wu301)


06 - Installation Accessories


07 - Pump Assembly


08 - Track & Rack Assembly


09 - Tub Assembly & Components


10 - Tub Supports, Base Frame, Motor & Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79
2	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	00			$ 9.40
3	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
4	901391		Timer Knob With Insert	00	Appelez-nous	-
5	901404		Control Switch, 2 Button	00	Appelez-nous	-
6	901434		Screw And Washer Assembly	00	Appelez-nous	-
7	901547		Timer Knob And Dial-chrome	00	Appelez-nous	-
8	901649CP		Timer   (Replaces: 901649)	00	Appelez-nous	-
9	901651		Control Panel With Inserts	00	Appelez-nous	-
10	901806		Wire Harness-wu301	00	Appelez-nous	-
11	901807		Wire Harness-wc301	00	Appelez-nous	-
12	901808		Wire Harness-canada Wu301	00	Appelez-nous	-
13	901809		Wire Harness-canada Wc301	00	Appelez-nous	-
14	901810		Wire Harness-240-50 Wu301	00	Appelez-nous	-
15	901811		Wire Harness-240-50 Wc301	00	Appelez-nous	-
16	901829		Timer Motor	00	Appelez-nous	-
17	911602		Timer Indicator Dial-chrome	00	Appelez-nous	-
18	911702		Ground Receptacle	00	Appelez-nous	-
19	911805		Button For Switch	00	Appelez-nous	-
20	912002		Barrier For Timer	00	Appelez-nous	-
21	912006		Washer	00	Appelez-nous	-
