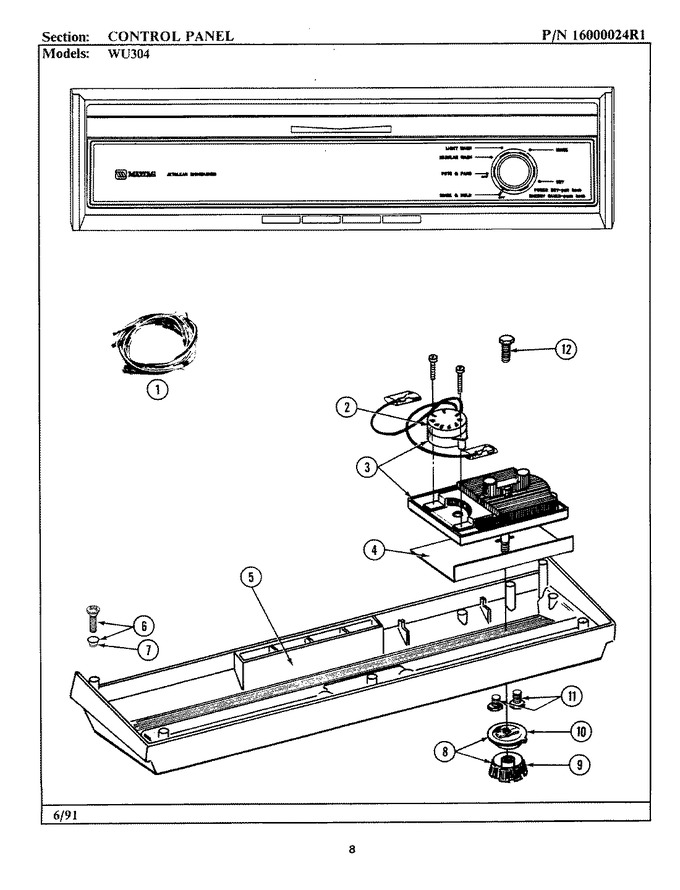

01 - Blower/air Inlet & Water Level (wu304)


02 - Control Panel (wu304)


03 - Door Assembly (wu304)


04 - Door Assy.-latch & Rinse Disp. (wu304)


05 - Front Panel & Access Panel (wu304)


06 - Installation Accessories (wu304)


07 - Installation Accessories (wu304)


08 - Pump & Motor Assembly (wu304)


09 - Racks (wu304)


10 - Tub (wu304)


11 - Tub Assembly (wu304)


12 - Tub Support (lt) (wu304)


13 - Tub Support (rt) (wu304)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903022		Wire Harness	01	Appelez-nous	-
1	902515		Wire Harness	00	Appelez-nous	-
1	902496		Wire Harness	00	Appelez-nous	-
1	903025		Wire Harness	01	Appelez-nous	-
2	901829		Timer Motor	00	Appelez-nous	-
3	902482CP		Timer   (Replaces: 902482)	00	Appelez-nous	-
4	912002		Barrier For Timer	00	Appelez-nous	-
5	902756		Control Panel Assy	00	Appelez-nous	-
6	901434		Screw And Washer Assembly	00	Appelez-nous	-
7	912006		Washer	00	Appelez-nous	-
8	EB680		Timer Knob & Dial   (Replaces: 902332)	00			$ 49.95
9	902299		Timer Knob With Insert	00	Appelez-nous	-
10	911602		Timer Indicator Dial-chrome	00	Appelez-nous	-
11	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
12	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79
