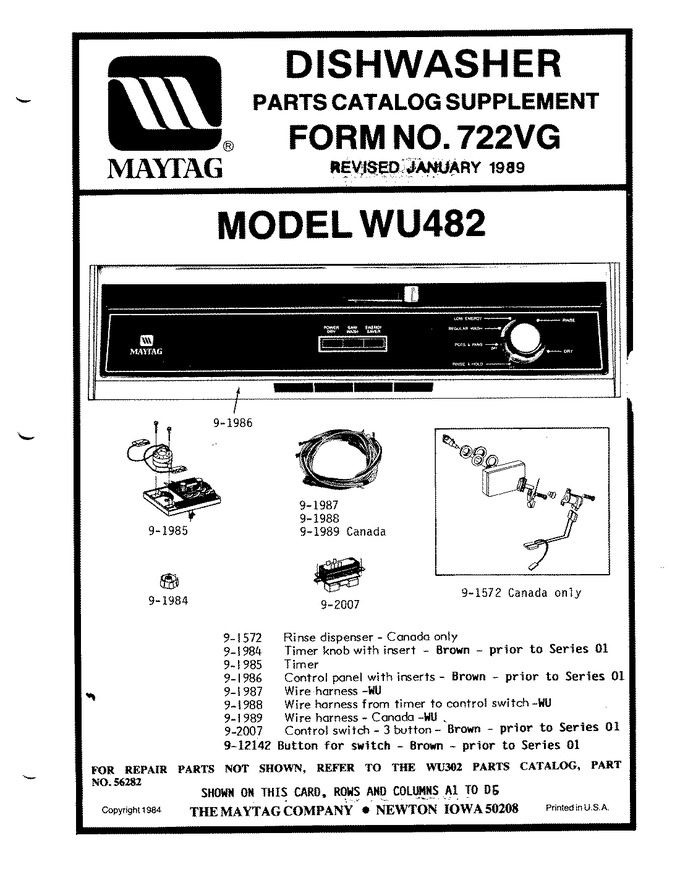

03 - Catalog Supplement (wu482 & Wc482)


04 - Control Panel & Components


05 - Conversion Kit (wc482)


06 - Door Assembly


07 - Faucet Adapter Kit (wc482)


08 - Faucet Assy, Cbnt, Front Pnl & Base (wc)


09 - Front Panel & Access Panels (wc482)


10 - Front Panel & Access Panels (wu482)


11 - Installation Accessories


12 - Pump Assembly


13 - Track & Rack Assembly


14 - Tub Assembly & Components


15 - Tub Support (left) Frame & Water Valves


16 - Tub Support (right) Base Frame & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	901572		Rinse Dispenser Kit	00	Appelez-nous	-
2	901984		Timer Knob With Insert	00	Appelez-nous	-
3	901985		Timer	00	Appelez-nous	-
4	901986		Control Panel With Inserts	00	Appelez-nous	-
5	901987		Wire Harness	00	Appelez-nous	-
6	901988		Sub-wire Harness	00	Appelez-nous	-
7	901989		Wire Harness - Canada	00	Appelez-nous	-
8	902007		Control Switch	00	Appelez-nous	-
9	912142		Button For Control Switch	00	Appelez-nous	-
13	901298		Water Valve-wu Models	00			$ 96.60
14	901572		Rinse Dispenser Kit	00	Appelez-nous	-
15	901985		Timer	00	Appelez-nous	-
16	901987		Wire Harness	00	Appelez-nous	-
17	901988		Sub-wire Harness	00	Appelez-nous	-
18	901989		Wire Harness - Canada	00	Appelez-nous	-
19	902289		Control Panel With Inserts	01	Appelez-nous	-
20	902295		Control Switch	01	Appelez-nous	-
21	902299		Timer Knob With Insert	01	Appelez-nous	-
22	902536		Wire Harness	03	Appelez-nous	-
23	902543		Water Valve	03			$ 88.06
24	912253		Button For Switch	01	Appelez-nous	-
