SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical, Literature


05 - Oven Door And Drawer

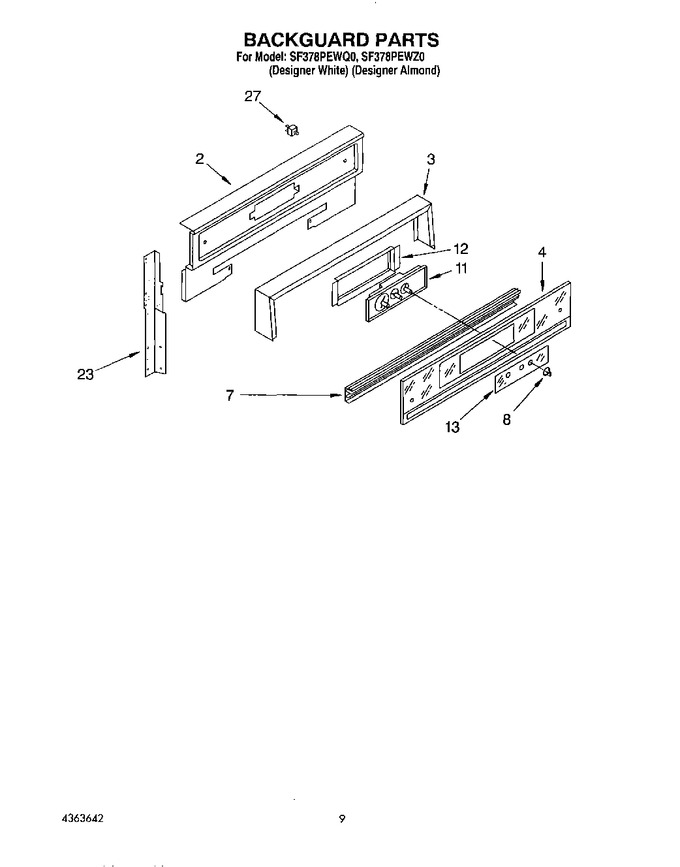

06 - Backguard


07 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4362898		Panel, Control Mounting (white)		Appelez-nous	-
2	4362993		Panel, Control Mounting (almond)		Appelez-nous	-
3	4363467		Frame (white)		Appelez-nous	-
3	4363468		Frame (almond)		Appelez-nous	-
4	4363469		Decorative Inlay (white)		Appelez-nous	-
4	4363470		Decorative Inlay (almond)		Appelez-nous	-
7	786694		Trim, Lower		Appelez-nous	-
8	4363630		Knob, Clock (3) (almond)		Appelez-nous	-
8	4363643		Knob, Clock (3) (white)		Appelez-nous	-
11	4363621		Clock (almond)		Appelez-nous	-
11	4363617		Clock (white)		Appelez-nous	-
12	786454		Plate, Clock Mounting		Appelez-nous	-
13	786453		Glass, Timer		Appelez-nous	-
23	4363523		Support, Control Panel (2) (r.h.)		Appelez-nous	-
23	4363522		Support, Control Panel (2) (l.h.)		Appelez-nous	-
27	4363528		Screw		Appelez-nous	-
27	4363638		Light Indicator		Appelez-nous	-
27	4336078		Lens		Appelez-nous	-
27	786761		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
