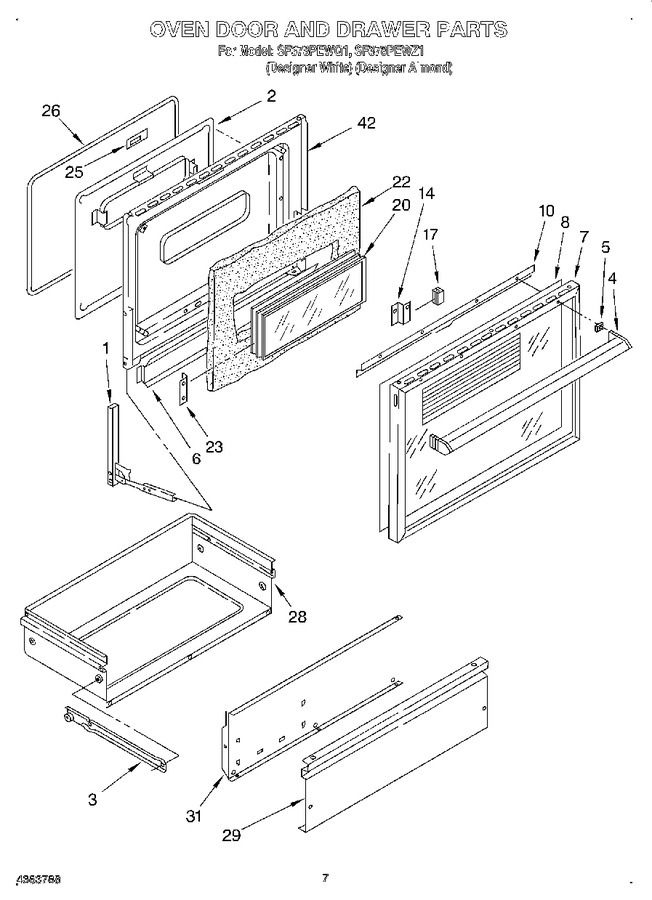

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363718		Hinge, Oven Door (r.h.)		Appelez-nous	-
1	4363717		Hinge, Oven Door (l.h.)		Appelez-nous	-
2	WP965173		Screw   (Replaces: 4315342)			Immediately	$ 9.65
2	4362533		Rivet, Semi-tube		Appelez-nous	-
2	WP488130		Nut   (Replaces: 786272)				$ 6.27
2	4321151		Screw		Appelez-nous	-
2	4320300		Liner, Oven Door		Appelez-nous	-
3	4363735		Runner (l.h.)		Appelez-nous	-
3	4363734		Runner (r.h.)		Appelez-nous	-
4	4363441		Handle, Oven Door ((white Model))		Appelez-nous	-
4	4363575		Handle, Oven Door ((almond Model))		Appelez-nous	-
5	4363010		Spacer, Handle (4)		Appelez-nous	-
6	4363316		Baffle, Heat		Appelez-nous	-
7	4363595		Frame, Oven Door ((almond Model))		Appelez-nous	-
7	4363571		Frame, Oven Door ((white Model))		Appelez-nous	-
8	4363440		Glass, Outer Door ((white Model))		Appelez-nous	-
8	4363596		Glass, Outer Door (almond)		Appelez-nous	-
10	786422		Plate, Air Baffle		Appelez-nous	-
14	786425		Bracket, Glass Support (4)		Appelez-nous	-
17	4179237		Bumper, Window (2)		Appelez-nous	-
20	4362602		Window Assembly		Appelez-nous	-
22	4315673		Insulation, Door		Appelez-nous	-
23	4179236		Retainer, Window (4)		Appelez-nous	-
25	786671		Plate, Latch		Appelez-nous	-
26	4320302		Gasket Assembly		Appelez-nous	-
28	4363306		Drawer, Storage		Appelez-nous	-
29	786522		Panel, Drawer (white)		Appelez-nous	-
29	786521		Panel, Drawer (almond)				$ 45.18
29	WP965173		Panel, Drawer (screw)   (Replaces: 4315342)			Immediately	$ 9.65
31	4363307		Liner, Door Panel		Appelez-nous	-
42	786526		Bumper, Rubber		Appelez-nous	-
42	4320875		Backer, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
