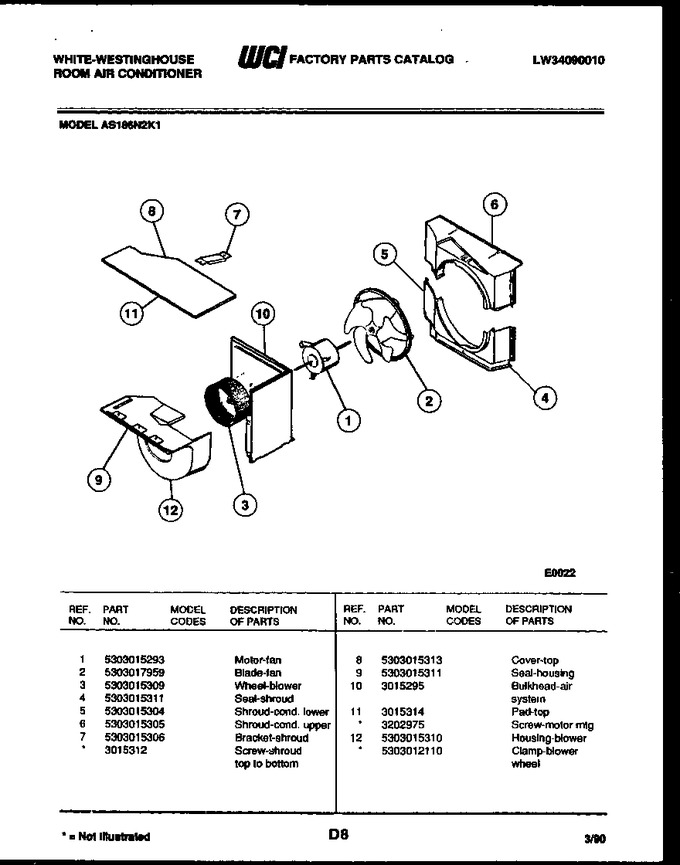

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015293 | Motor-fan |
|
- | |||||
| 2 | 5303017959 | Blade-fan |
|
- | |||||
| 3 | 5303015309 | Wheel-blower |
|
- | |||||
| 4 | 5303015311 | Seal-shroud |
|
- | |||||
| 5 | 5303015304 | Shroud-cond. Lower |
|
- | |||||
| 6 | 5303015305 | Shroud-cond. Upper |
|
- | |||||
| 7 | 5303015306 | Bracket - Shroud |
|
- | |||||
| 8 | 5303015313 | Cover - Top |
|
- | |||||
| 9 | 5303015311 | Seal - Housing |
|
- | |||||
| 10 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 11 | 3015314 | Pad-top |
|
- | |||||
| 12 | 5303015310 | Housing-blower |
|
- | |||||
| *27742 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| 11A | 3202975 | Screw-motor Mtg (non-illustrated) |
|
- | |||||
| 7A | 3015312 | Screw-shroud Top To Bottom (non-illustrated) |
|
- |
