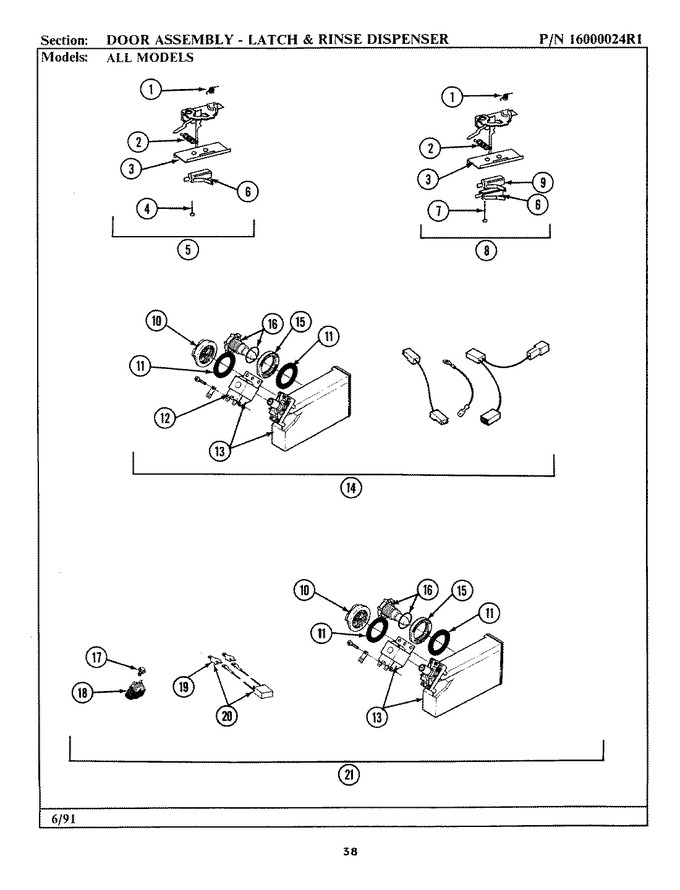

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 911591 | Spring, Interlock | 00 |
|
- | ||||
| 2 | 911592 | Return Spring | 00 |
|
- | ||||
| 3 | 912078 | Door Switch Shield | 00 |
|
- | ||||
| 4 | 910337 | Screw | 00 |
|
- | ||||
| 5 | 902791 | Latch Assy | 00 |
|
- | ||||
| 6 | 901284 | Switch, Door | 00 |
|
- | ||||
| 10 | 912262 | Spout Cap | 00 |
|
- | ||||
| 11 | 910069 | Washer, Tub Top | 00 |
|
$ 35.86 | ||||
| 12 | UT076 | Coil For Valve (Replaces: 902358) | 00 |
|
Immediately | $ 44.96 | |||
| 13 | 902355 | Dispensing Valve | 00 |
|
- | ||||
| 14 | 901572 | Rinse Dispenser Kit | 00 |
|
- | ||||
| 15 | 910170 | Nut-fill Spout | 00 |
|
- | ||||
| 16 | 902354 | Indicator, Level | 00 |
|
- | ||||
| 17 | WP3177991 | Screw (Replaces: Y251119) | 00 |
|
Immediately | $ 6.47 | |||
| 18 | 901961 | Relay (4 Contact) | 00 |
|
- | ||||
| 19 | Y312140 | Wire Connector | 00 |
|
- |
