01 - Blower/air Inlet & Water Level Float

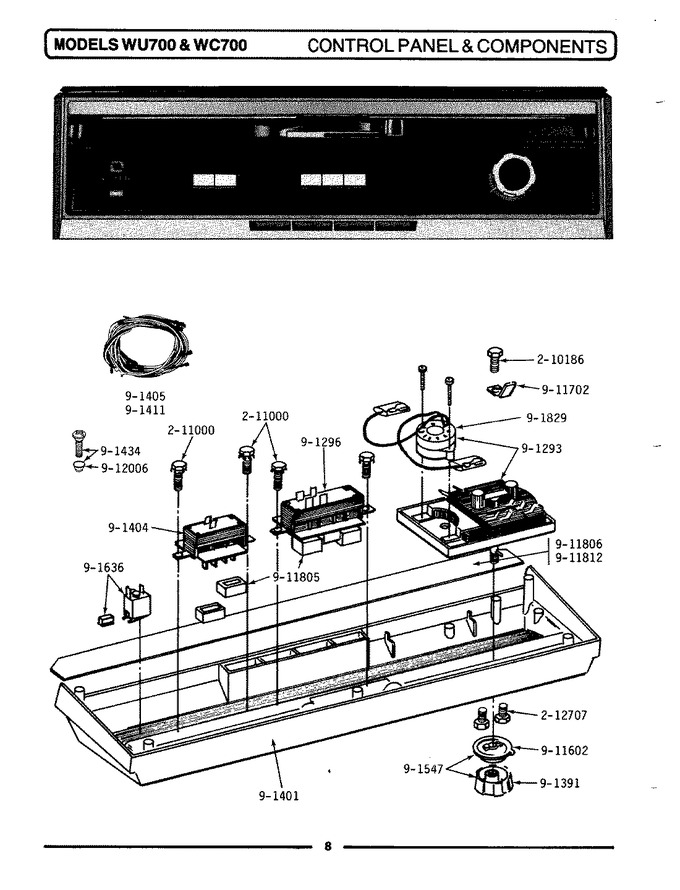

02 - Control Panel & Components


03 - Conversion Kit


04 - Decorator Trim Parts


05 - Door Assembly


06 - Faucet Adapter Kit (inside Threaded)


07 - Faucet Adapter Kit (outside Threaded)


08 - Faucet Adapter Kit (unthreaded)


09 - Faucet Assy, Cabinet, Front Panel & Base


10 - Front Panel & Access Panel


11 - Installation Accessories


12 - Pump Assembly


13 - Track & Rack Assembly


14 - Tub Assembly & Components


15 - Tub Supports, Base Frame, Motor & Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79
2	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	00			$ 9.40
3	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
4	UEFM		Timer   (Replaces: 901293)	00		Immediately	$ 95.38
5	901296		Control Switch, 3 Button	00	Appelez-nous	-
6	901391		Timer Knob With Insert	00	Appelez-nous	-
7	901401		Control Panel With Inserts	00	Appelez-nous	-
8	901404		Control Switch, 2 Button	00	Appelez-nous	-
9	901405		Wire Harness	00	Appelez-nous	-
10	901411		Wire Harness	00	Appelez-nous	-
11	901434		Screw And Washer Assembly	00	Appelez-nous	-
12	901547		Timer Knob And Dial-chrome	00	Appelez-nous	-
13	901636		Indicator Lamp	00	Appelez-nous	-
14	901829		Timer Motor	00	Appelez-nous	-
15	911602		Timer Indicator Dial-chrome	00	Appelez-nous	-
16	911702		Ground Receptacle	00	Appelez-nous	-
17	911805		Button For Switch	00	Appelez-nous	-
18	911806		Filler Strip-f/control Pane	00	Appelez-nous	-
19	911812		Fastener	00	Appelez-nous	-
20	912006		Washer	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
