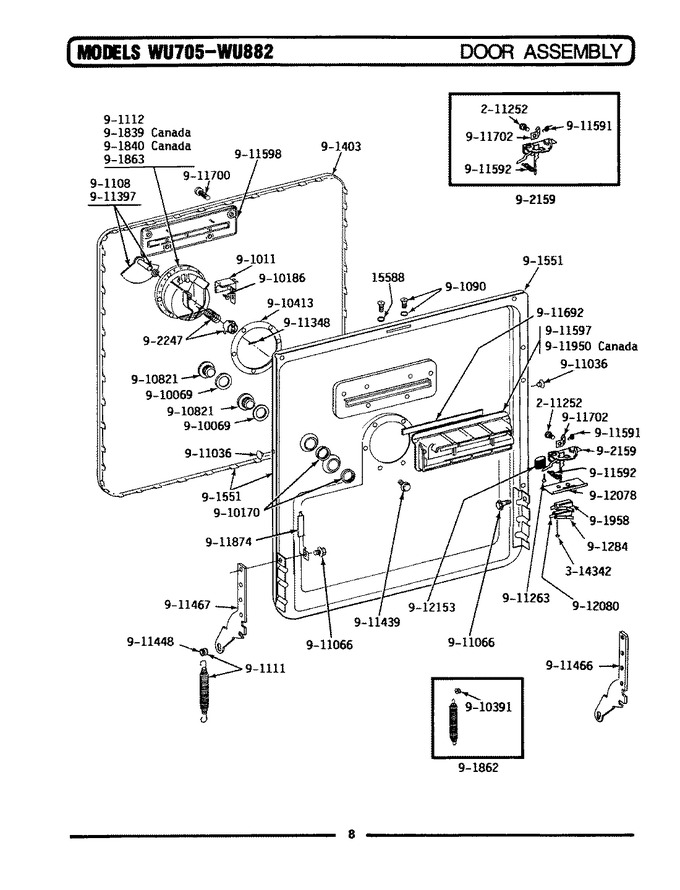

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 015588 | Lead Washer | 00 |
|
- | ||||
| 2 | WP489399 | Screw (Replaces: 211252) | 00 |
|
$ 6.26 | ||||
| 5 | 314342 | Screw | 00 |
|
- | ||||
| 6 | 901011 | Bi-metal Release | 00 |
|
- | ||||
| 7 | 901090 | Screw And Washer Assembly | 00 |
|
- | ||||
| 8 | 901108 | Detergent Cup,cover & Seal | 00 |
|
- | ||||
| 9 | 901111 | Door Spring Kit | 00 |
|
$ 39.18 | ||||
| 10 | 901112 | Detergent Cup With Gasket | 00 |
|
- | ||||
| 11 | 901284 | Switch, Door | 00 |
|
- | ||||
| 12 | WP901403 | Gasket, Door (Replaces: 901403) | 00 |
|
Immediately | $ 170.40 | |||
| 13 | 901551 | Door And Gasket Assembly | 00 |
|
- | ||||
| 14 | 901839 | Detergent Cup, Canada | 00 |
|
- | ||||
| 15 | 901840 | Detergent Cup - Canada | 00 |
|
- | ||||
| 16 | Y901862 | Door Spring Kit | 00 |
|
$ 20.84 | ||||
| 17 | 901863 | Detergent Cup With Gasket | 00 |
|
- | ||||
| 18 | 901958 | Door Switch | 00 |
|
- | ||||
| 20 | 902159 | Door Latch Assembly - Wu100 | 00 |
|
- | ||||
| 21 | 902247 | Cam And Spring Kit | 00 |
|
- | ||||
| 27 | 910069 | Washer, Tub Top | 00 |
|
$ 35.86 | ||||
| 28 | 910170 | Nut-fill Spout | 00 |
|
- | ||||
| 29 | 910186 | Screw | 00 |
|
- | ||||
| 31 | 910391 | Insert | 00 |
|
$ 5.84 | ||||
| 32 | 910413 | Gasket | 00 |
|
- | ||||
| 33 | 910821 | Plug For Dispenser Holes | 00 |
|
$ 37.31 | ||||
| 35 | 911036 | Guide Button | 00 |
|
- | ||||
| 36 | 911066 | Screw | 00 |
|
- | ||||
| 37 | Y911263 | Screw | 00 |
|
- | ||||
| 38 | 911348 | Detergent Cup Pin | 00 |
|
- | ||||
| 39 | 911397 | Detergent Cup Seal | 00 |
|
$ 24.13 | ||||
| 40 | 911439 | Screw | 00 |
|
- | ||||
| 41 | 911448 | Insert For Hinge | 00 |
|
$ 5.75 | ||||
| 42 | 911466 | Hinge-right Hand | 00 |
|
- | ||||
| 43 | 911467 | Hinge-left Hand | 00 |
|
- | ||||
| 44 | 911591 | Spring, Interlock | 00 |
|
- | ||||
| 45 | 911592 | Return Spring | 00 |
|
- | ||||
| 46 | 911597 | Vent For Door | 00 |
|
- | ||||
| 47 | 911598 | Cover For Door Vent | 00 |
|
- | ||||
| 48 | 911692 | Flapper For Vent | 00 |
|
- | ||||
| 49 | 911700 | Screw | 00 |
|
- | ||||
| 50 | 911702 | Ground Receptacle | 00 |
|
- | ||||
| 51 | 911874 | Grounding Bracket | 00 |
|
- | ||||
| 52 | 911950 | Vent For Door - Canada | 00 |
|
- | ||||
| 53 | 912078 | Door Switch Shield | 00 |
|
- | ||||
| 54 | 912080 | Art Not Used | 00 |
|
- | ||||
| 55 | 912153 | Knob For Latch (du598b) | 00 |
|
- | ||||
| NI | Y312140 | Wire Connector | 00 |
|
- | ||||
| NI | WP3177991 | Screw (Replaces: Y251119) | 00 |
|
Immediately | $ 6.47 | |||
| NI | 912262 | Spout Cap | 00 |
|
- | ||||
| NI | 912263 | Nut, Spout | 00 |
|
- | ||||
| NI | 910988 | Gasket | 00 |
|
- | ||||
| NI | 912264 | Washer | 00 |
|
- | ||||
| NI | 910337 | Screw | 00 |
|
- | ||||
| NI | 902578 | Dispenser Valve Kit | 00 |
|
- | ||||
| NI | 902577 | Capacitor Assy | 00 |
|
$ 31.98 | ||||
| NI | UT076 | Coil For Valve (Replaces: 902358) | 00 |
|
Immediately | $ 44.96 | |||
| NI | 902355 | Dispensing Valve | 00 |
|
- | ||||
| NI | 902354 | Indicator, Level | 00 |
|
- | ||||
| NI | 901961 | Relay (4 Contact) | 00 |
|
- |
