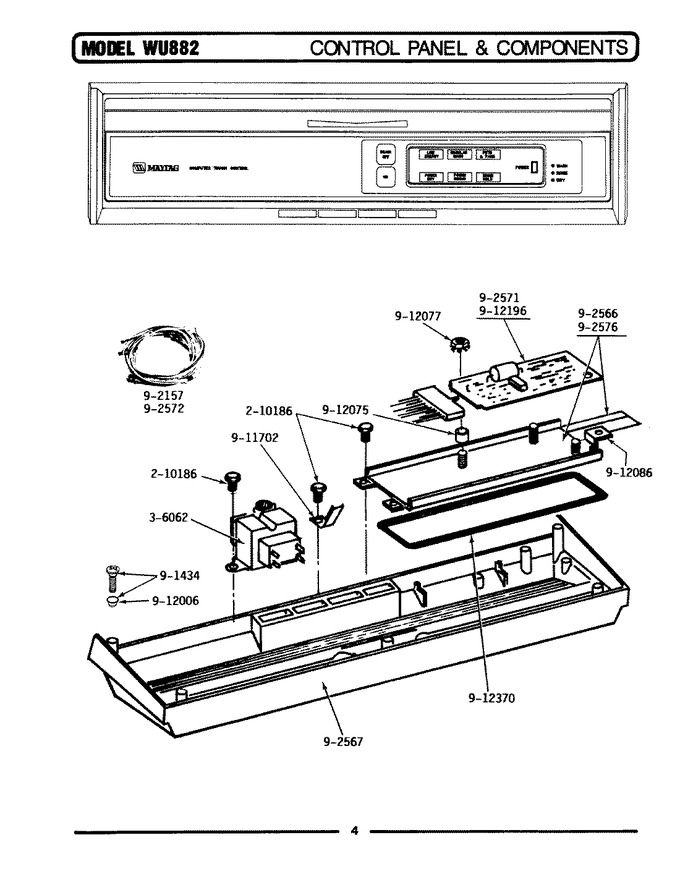

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 00 |
|
$ 9.79 | ||||
| 3 | 306062 | Transformer | 00 |
|
- | ||||
| 4 | 901434 | Screw And Washer Assembly | 00 |
|
- | ||||
| 7 | 902157 | Wire Harness | 00 |
|
- | ||||
| 8 | 902566 | Control Switch Wu882 | 00 |
|
- | ||||
| 9 | 902567 | Control Panel W/inserts | 00 |
|
- | ||||
| 10 | 902571 | Circuit Board Assy | 00 |
|
- | ||||
| 11 | 902572 | Wire Harness 120v | 00 |
|
- | ||||
| 12 | 902576 | Touch Pad Assy Wu882 | 00 |
|
- | ||||
| 15 | 911702 | Ground Receptacle | 00 |
|
- | ||||
| 16 | 912006 | Washer | 00 |
|
- | ||||
| 17 | 912075 | Circuit Board Spacer | 00 |
|
- | ||||
| 18 | M0282005 | Locknut (Replaces: 912077) | 00 |
|
$ 7.07 | ||||
| 21 | 912086 | Clip,speed | 00 |
|
- | ||||
| 22 | 912196 | Light Shield | 00 |
|
- | ||||
| 24 | 912370 | Control Panel | 00 |
|
- | ||||
| NI | 912082 | Bracket, Relays | 00 |
|
- | ||||
| NI | 912085 | Label For Relay Bracket | 00 |
|
- | ||||
| NI | WP4312464 | Screw (Replaces: 912197) | 00 |
|
$ 6.26 | ||||
| NI | WP3177991 | Screw (Replaces: Y251119) | 00 |
|
Immediately | $ 6.47 | |||
| NI | WP4312464 | Screw (Replaces: 911050) | 00 |
|
$ 6.26 | ||||
| NI | 911231 | Base, Frame | 00 |
|
- | ||||
| NI | 901962 | Relay (5 Contact) | 00 |
|
- | ||||
| NI | 901961 | Relay (4 Contact) | 00 |
|
- |
