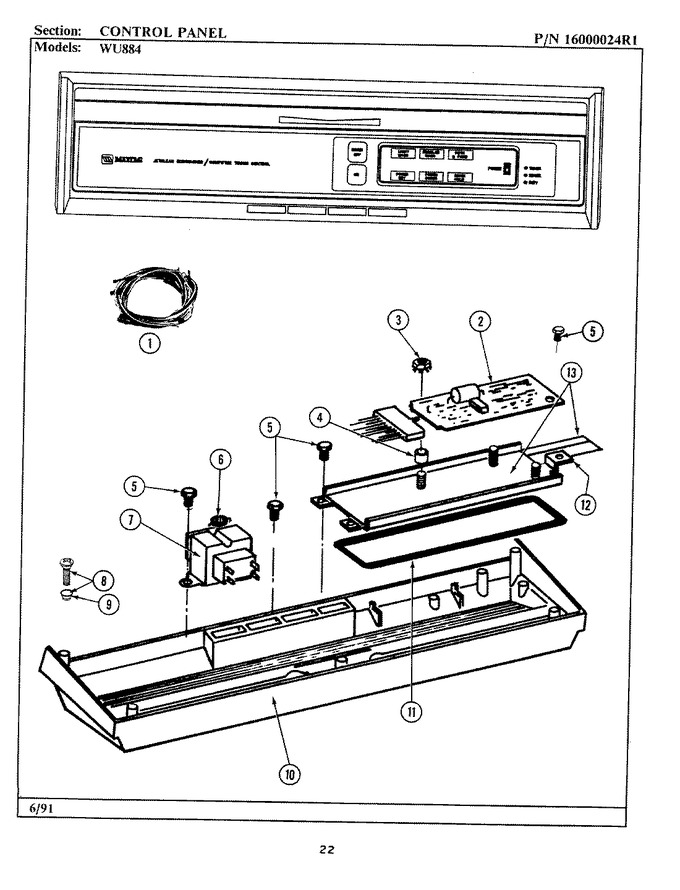

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 902879 | Capacitor (24 Volt) | 00 |
|
- | ||||
| 1 | 902787 | Wire Harness | 00 |
|
- | ||||
| 1 | 902789 | Capacitor Assy. | 00 |
|
- | ||||
| 2 | 912196 | Light Shield | 00 |
|
- | ||||
| 2 | 902571 | Circuit Board Assy | 00 |
|
- | ||||
| 3 | M0282005 | Locknut (Replaces: 912077) | 00 |
|
$ 7.07 | ||||
| 4 | 912075 | Circuit Board Spacer | 00 |
|
- | ||||
| 5 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 00 |
|
$ 9.79 | ||||
| 6 | 520014 | Varistor | 00 |
|
- | ||||
| 7 | 306062 | Transformer | 00 |
|
- | ||||
| 8 | 901434 | Screw And Washer Assembly | 00 |
|
- | ||||
| 9 | 912006 | Washer | 00 |
|
- | ||||
| 10 | 902764 | Control Panel Assy | 00 |
|
- | ||||
| 11 | 912370 | Control Panel | 00 |
|
- | ||||
| 12 | 912086 | Clip,speed | 00 |
|
- | ||||
| 13 | 902842 | Control Switch | 00 |
|
- | ||||
| 13 | 902845 | Touch Pad Assy | 00 |
|
- |
