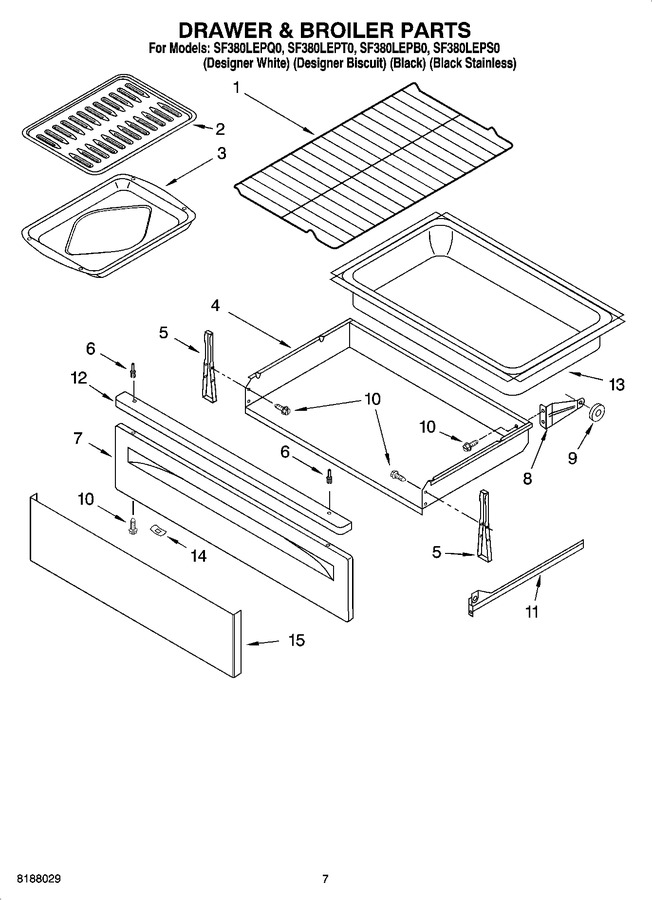

05 - Drawer & Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (3) (Replaces: 3195710) |
|
Immediately | $ 42.16 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 82.63 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 279.38 | |||||
| 4 | 8272606 | Drawer, Storage |
|
- | |||||
| 5 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 23.55 | |||||
| 6 | 3196815 | Rivet, Push (2) (almond) |
|
- | |||||
| 6 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 9.60 | ||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 9.49 | ||||
| 7 | W11230490 | Drawer Front (black) (Replaces: 8053338) |
|
$ 181.36 | |||||
| 7 | W11230486 | Drawer Front (white) (Replaces: 8053336) |
|
$ 181.28 | |||||
| 7 | W11230473 | Drawer Front (biscuit) (Replaces: 8272502) |
|
- | |||||
| 8 | 8054069 | Bracket, Roller |
|
- | |||||
| 9 | 814229 | Roller (2) (Replaces: 422604) |
|
Immediately | $ 51.23 | ||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 11 | 8274191 | Rail Assy, Drawer (right Side) |
|
- | |||||
| 11 | 8274190 | Rail Assy, Drawer (left Side) |
|
- | |||||
| 11 | W10761014 | Rail Assy, Drawer (black) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | 8053949 | Handle, Stainless |
|
- | |||||
| 13 | 8272528 | Liner, Drawer |
|
- | |||||
| 14 | WP9781235 | Clip (Replaces: 9781235) |
|
$ 10.76 | |||||
| 15 | 9755797 | Panel, Stainless |
|
- |
