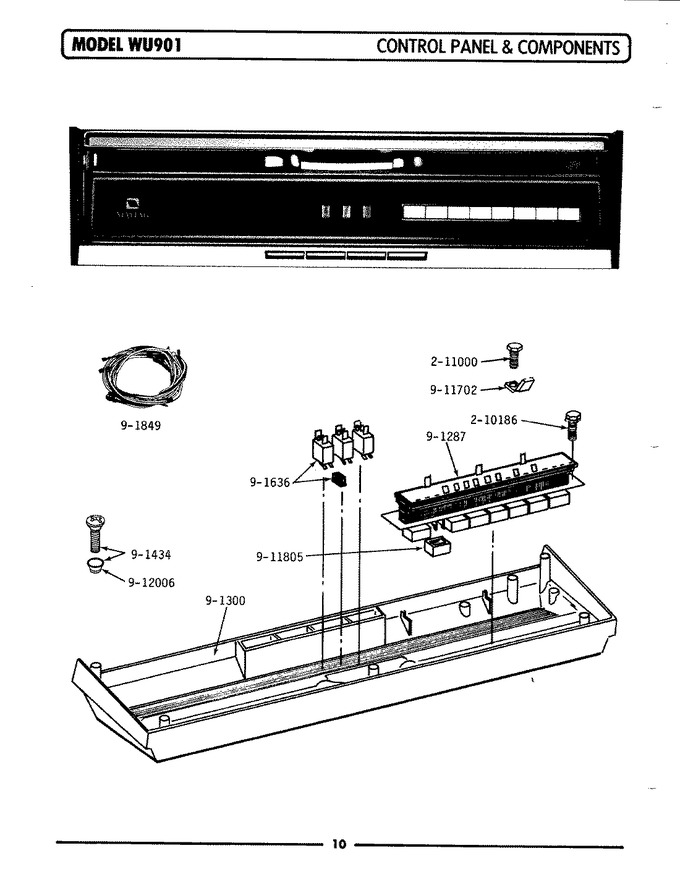

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 00 |
|
$ 9.79 | ||||
| 2 | WP8281227 | Screw,hex Head (brake Drum) (Replaces: 211000) | 00 |
|
$ 9.40 | ||||
| 5 | 901287 | Control Switch | 00 |
|
- | ||||
| 6 | 901300 | Control Panel With Inserts | 00 |
|
- | ||||
| 7 | 901434 | Screw And Washer Assembly | 00 |
|
- | ||||
| 9 | 901636 | Indicator Lamp | 00 |
|
- | ||||
| 11 | 901849 | Wire Harness-wu901 | 00 |
|
- | ||||
| 17 | 911702 | Ground Receptacle | 00 |
|
- | ||||
| 18 | 911805 | Button For Switch | 00 |
|
- | ||||
| 19 | 912006 | Washer | 00 |
|
- | ||||
| NI | 901523 | Timer Motor, Rapid Advance | 00 |
|
- | ||||
| NI | WP4312464 | Screw (Replaces: 911050) | 00 |
|
$ 6.26 | ||||
| NI | 911231 | Base, Frame | 00 |
|
- | ||||
| NI | 911503 | Bracket Timer | 00 |
|
- | ||||
| NI | 911504 | Barrier | 00 |
|
- | ||||
| NI | 911660 | Label | 00 |
|
- | ||||
| NI | 901283 | Timer | 00 |
|
- | ||||
| NI | 251193 | Screw | 00 |
|
- | ||||
| NI | 901829 | Timer Motor | 00 |
|
- |
