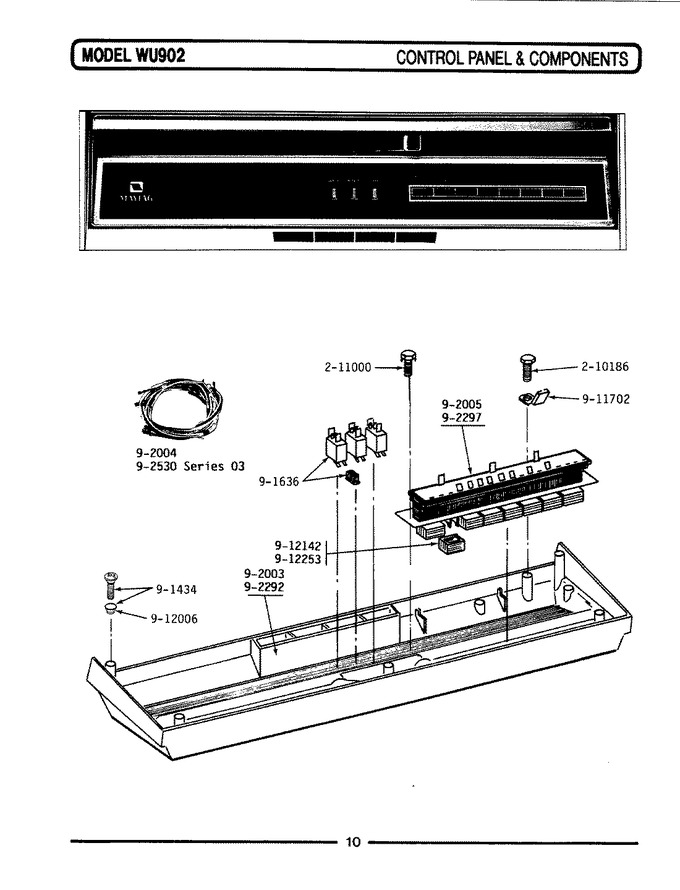

02 - Control Panel & Components (wu902)


03 - Door Assembly


04 - Front Panel & Access Panels


05 - Installation Accessories


06 - Pump Assembly


07 - Track & Rack Assembly


08 - Tub Assembly & Components


09 - Tub Support (left) Frame & Water Valves


10 - Tub Support (right) Base Frame & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	00			$ 9.79
2	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	00			$ 9.40
4	901434		Screw And Washer Assembly	00	Appelez-nous	-
6	901636		Indicator Lamp	00	Appelez-nous	-
9	902003		Control Panel With Inserts	00	Appelez-nous	-
10	902004		Wire Harness	00	Appelez-nous	-
11	902005		Control Switch	00	Appelez-nous	-
12	902292		Control Panel With Inserts	01	Appelez-nous	-
13	902297		Switch, Control	01	Appelez-nous	-
14	902530		Wire Harness	03	Appelez-nous	-
18	911702		Ground Receptacle	00	Appelez-nous	-
19	912006		Washer	00	Appelez-nous	-
20	912142		Button For Control Switch	00	Appelez-nous	-
21	912143		Label For 9-2002 Timer	00	Appelez-nous	-
NI	912253		Button For Switch	00	Appelez-nous	-
NI	901829		Timer Motor	00	Appelez-nous	-
NI	902002		Timer	00	Appelez-nous	-
NI	251193		Screw	00	Appelez-nous	-
NI	911231		Base, Frame	00	Appelez-nous	-
NI	911503		Bracket Timer	00	Appelez-nous	-
NI	911504		Barrier	00	Appelez-nous	-
NI	WP4312464		Screw   (Replaces: 912197)	00			$ 6.26
NI	901523		Timer Motor, Rapid Advance	00	Appelez-nous	-
