SELECT A DIAGRAM
New Model Search:

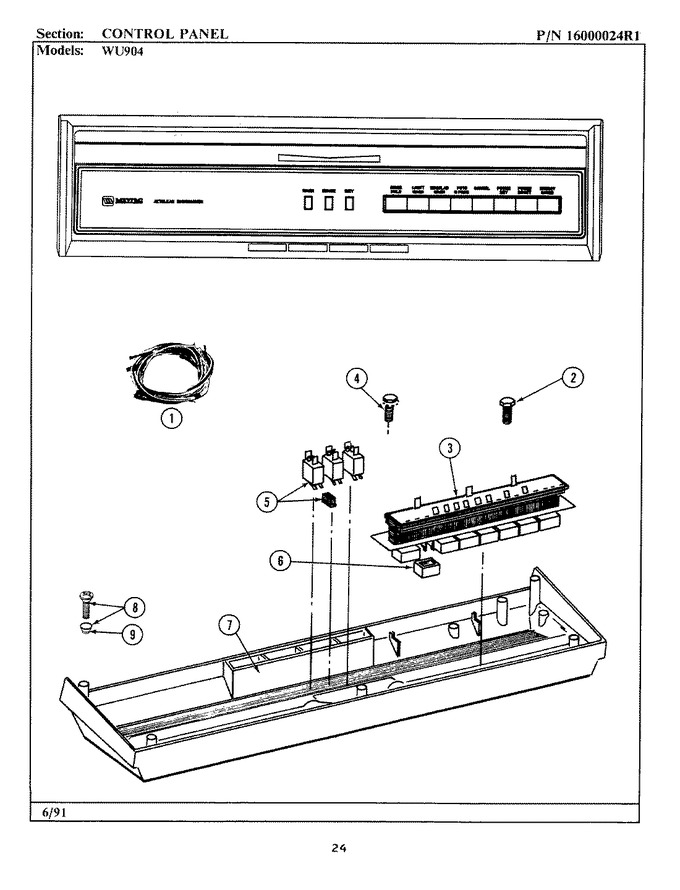

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 903019 | Subharness | 01 |
|
- | ||||
| 1 | 903018 | Wire Harness | 01 |
|
- | ||||
| 1 | 902492 | Wire Harness | 00 |
|
- | ||||
| 1 | 902491 | Wire Harness | 00 |
|
- | ||||
| 2 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 00 |
|
$ 9.79 | ||||
| 3 | 902297 | Switch, Control | 00 |
|
- | ||||
| 4 | WP8281227 | Screw,hex Head (brake Drum) (Replaces: 211000) | 00 |
|
$ 9.40 | ||||
| 5 | 901636 | Indicator Lamp | 00 |
|
- | ||||
| 6 | 912253 | Button For Switch | 00 |
|
- | ||||
| 7 | 902765 | Control Panel Assy | 00 |
|
- | ||||
| 8 | 901434 | Screw And Washer Assembly | 00 |
|
- | ||||
| 9 | 912006 | Washer | 00 |
|
- |
