SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical, Literature


05 - Oven Door And Drawer


06 - Backguard


07 - Cooktop

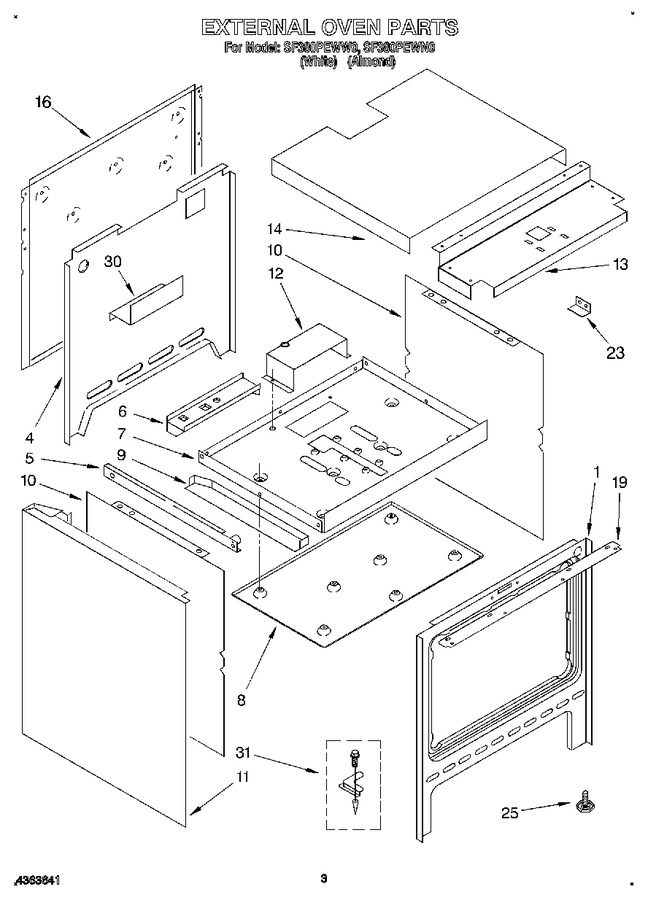

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363324		Frame, Front Not Serviceable		Appelez-nous	-
4	4363524		Retainer, Rear Insulation		Appelez-nous	-
5	4363322		Track, Storage Drawer (right Side)		Appelez-nous	-
5	4363321		Track, Storage Drawer (left Side)		Appelez-nous	-
6	WP486754		Screw   (Replaces: 4320376)				$ 6.75
6	4363526		Screw		Appelez-nous	-
6	WP488130		Nut (4)   (Replaces: 786272)				$ 6.27
6	4363314		Shelf, Gas Valve		Appelez-nous	-
6	786753		Nut		Appelez-nous	-
7	WP965173		Screw   (Replaces: 4315342)			Immediately	$ 9.65
7	4315770		Retainer, Bottom Insulation		Appelez-nous	-
8	4363525		Heat Shield, Storage Drawer		Appelez-nous	-
9	4363302		Brace, Bottom (l.h.)		Appelez-nous	-
9	4363303		Brace, Bottom (r.h.)		Appelez-nous	-
10	4362922		Retainer, Insulation		Appelez-nous	-
11	4363448		Panel, End (white)		Appelez-nous	-
11	4363411		Panel, End (almond)		Appelez-nous	-
12	4320890		Retainer, Ignitor		Appelez-nous	-
12	4363526		Screw		Appelez-nous	-
13	4363587		Retainer, Top Front Insulation		Appelez-nous	-
14	4363589		Retainer, Top Back		Appelez-nous	-
16	4362559		Panel, Rear		Appelez-nous	-
19	4362949		Frame, Filler Front		Appelez-nous	-
23	WP488130		Nut, Hex.   (Replaces: 786272)				$ 6.27
23	4315678		Bracket, Gas Valve (2)		Appelez-nous	-
23	4363526		Screw		Appelez-nous	-
25	4363323		Leg, Leveling (4)		Appelez-nous	-
30	4363315		Cover, Electrical		Appelez-nous	-
31	4315756		Anti Tip Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
