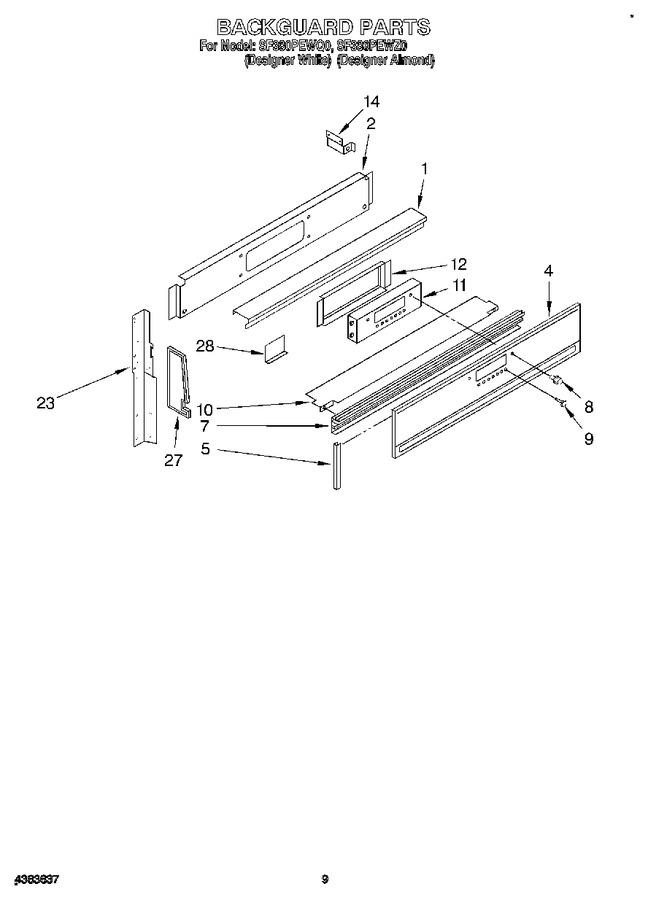

06 - Backguard


07 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363011		Trim, Top (white)		Appelez-nous	-
1	4363607		Trim, Top (almond)		Appelez-nous	-
1	786761		Trim, Top (screw)		Appelez-nous	-
1	WP965173		Trim, Top (screw)   (Replaces: 786223)			Immediately	$ 9.65
1	786762		Trim, Top (screw)		Appelez-nous	-
2	4363465		Panel, Control Mounting		Appelez-nous	-
4	4363563		Glass, Control Panel (white)		Appelez-nous	-
4	4363635		Glass, Control Panel (almond)		Appelez-nous	-
5	4363693		Channel, Glass (almond Model)		Appelez-nous	-
5	4363694		Channel, Glass (white Model)		Appelez-nous	-
7	4320980		Trim, Lower		Appelez-nous	-
8	4363510		Knob, Clock (white)		Appelez-nous	-
8	4363511		Knob, Clock (almond)		Appelez-nous	-
9	4363413		Knob, Set Button (almond)		Appelez-nous	-
9	4363412		Knob, Set Button (white)		Appelez-nous	-
10	4363566		Screw		Appelez-nous	-
10	4363565		Shield, Heat		Appelez-nous	-
11	4363564		Electronic Range Control		Appelez-nous	-
12	4320878		Bracket, Electronic Range Control		Appelez-nous	-
14	786701		Support, Lamp Socket (left Side)		Appelez-nous	-
14	786702		Support, Lamp Socket (right Side)		Appelez-nous	-
23	4363522		Support, Control Panel (2) (l.h.)		Appelez-nous	-
23	4363523		Support, Control Panel (2) (r.h.)		Appelez-nous	-
27	4320872		End Cap (white, R.h.)		Appelez-nous	-
27	4363605		End Cap (almond, R.h.)		Appelez-nous	-
27	4363604		End Cap (almond, L.h.)		Appelez-nous	-
27	4320873		End Cap (white, L.h.)		Appelez-nous	-
28	4363569		Bottom, Flue Box		Appelez-nous	-
