SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical, Literature


05 - Oven Door And Drawer


06 - Backguard

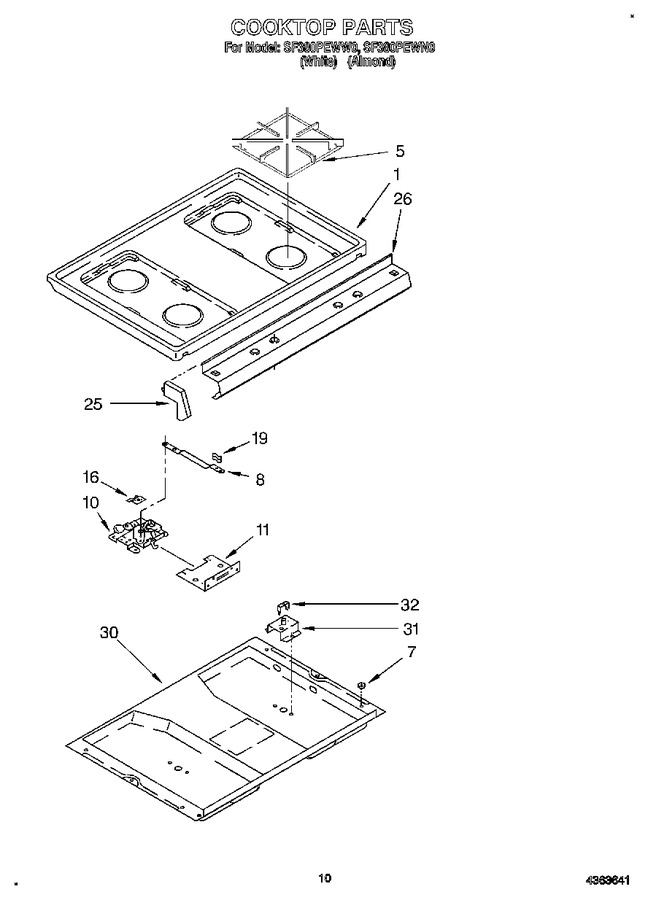

07 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363634		Top, Main (almond)		Appelez-nous	-
1	4363439		Top, Main (white)		Appelez-nous	-
5	4363227		Grate, Top Burner (4)		Appelez-nous	-
7	786342		Spacer, Nylon (4)		Appelez-nous	-
8	4320864		Handle, Latch		Appelez-nous	-
8	4363528		Screw		Appelez-nous	-
10	786303		Latch Assembly		Appelez-nous	-
10	4363526		Screw		Appelez-nous	-
10	4363528		Screw		Appelez-nous	-
11	4315774		Bracket, Latch Mounting		Appelez-nous	-
16	4362570		Bracket, Switch		Appelez-nous	-
16	786752		Screw		Appelez-nous	-
19	4320863		Knob, Latch Handle		Appelez-nous	-
25	4363473		End Cap (right Side)		Appelez-nous	-
25	4363472		End Cap (left Side)		Appelez-nous	-
26	4363619		Panel, Control		Appelez-nous	-
30	4362919		Burner Box		Appelez-nous	-
31	786684		Bracket, Top (2)		Appelez-nous	-
32	786754		Bracket, Electrode (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
