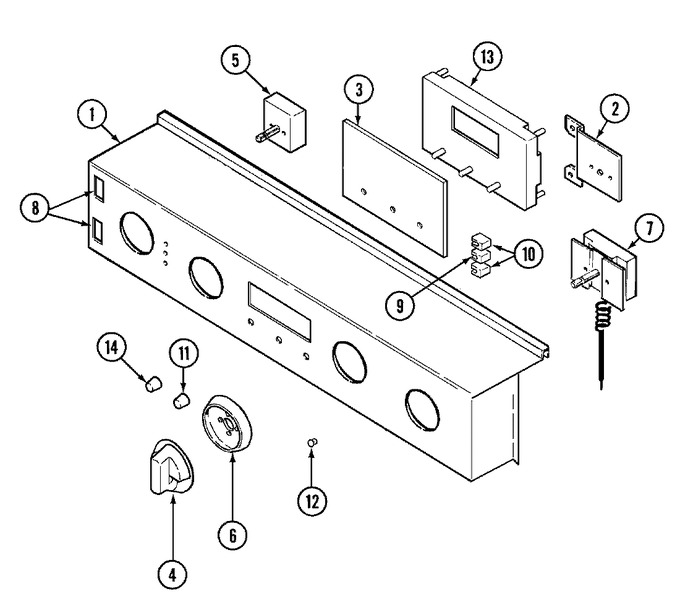

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71001473		Panel, Control (ss)	11	Appelez-nous	-
2	04100659		Wire, Resistor	11	Appelez-nous	-
2	71001479		Bracket, Clock	11	Appelez-nous	-
3	04100132		Lens, Timer----na	11	Appelez-nous	-
4	71001474		Knob, Thermostat----na	11	Appelez-nous	-
5	703079		Selector-lower	11	Appelez-nous	-
5	703077		Switch, Selector Upper	11	Appelez-nous	-
6	71001475		Bezel, Knob	11	Appelez-nous	-
6	71001476		Bezel, Knob	11	Appelez-nous	-
6	71001477		Bezel, Knob	11	Appelez-nous	-
6	71001478		Bezel, Knob	11	Appelez-nous	-
7	71002058		Screw   (Replaces: Y702124)	11			$ 5.82
7	Y04100575		Thermostat	11			$ 214.97
7	Y04100511		Thermostat	11	Appelez-nous	-
8	Y704311		Switch, Oven Light (blk)	11	Appelez-nous	-
9	Y702394		Light, Indicator 240v	11	Appelez-nous	-
10	Y702393		Light, Indicator-120v	11	Appelez-nous	-
11	WP7711P492-60		Knob, Clock (sm/blk)   (Replaces: Y704239)	11			$ 12.13
12	Y700630		Lens, Indicator Lights	11			$ 4.18
13	12200028CP		Clock Kit, Electronic   (Replaces: 12200028)	11	Appelez-nous	-
14	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)	11			$ 12.13
NI	71001434		Wire Harness (upr)	11	Appelez-nous	-
NI	71001435		Wire	11	Appelez-nous	-
NI	703738		Harness, Wire	11	Appelez-nous	-
NI	71001923		Manual, Use & Care	11	Appelez-nous	-
NI	16000326		Guide, Quick Ref - Jenn-air	11	Appelez-nous	-
NI	WPW10339879		Tie, Cable   (Replaces: 701678)	11			$ 7.11

    View Diagram in Separate Window       Print Part List
