01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information (ww27430bc/wc)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

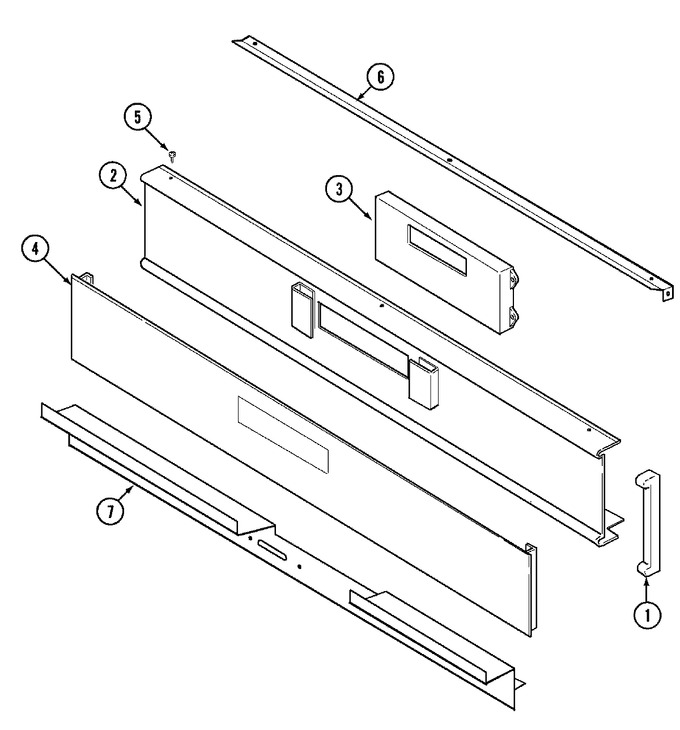

| 1 | 71001794 | End Cap, Panel (blk) | 11 |
|
- | ||||
| 2 | 71001941 | Panel, Control (blk) | 11 |
|
- | ||||
| 3 | WP71001872 | Clock (Replaces: 71001872) | 11 |
|
$ 390.49 | ||||
| 4 | 71001983 | Switch, Membrane (blk) | 11 |
|
- | ||||
| 5 | Y704488 | Screw (black) | 11 |
|
- | ||||
| 6 | 71001945 | Support, Control Panel | 11 |
|
- | ||||
| 7 | 71001946 | Trim, Control Panel (blk) | 11 |
|
- | ||||
| 7 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 11 |
|
Immediately | $ 12.62 | |||
| NI | 71001798 | Harness, Wire Control (j2) | 11 |
|
- | ||||
| NI | 71001807 | Harness, Supply (j1) | 11 |
|
- | ||||
| NI | 71001808 | Harness, Door Switch (upr) | 11 |
|
- | ||||
| NI | 71001809 | Harness, Door Lock (upr) | 11 |
|
- | ||||
| NI | 71001868 | Harness, Meat Probe | 11 |
|
- | ||||
| NI | 71002619 | Wire, Hi-limit | 11 |
|
- | ||||
| NI | 71001875 | Harness, Control (j9-lwr) |
|
- | |||||
| NI | 71001876 | Harness, Door Switch (lwr) | 11 |
|
- | ||||
| NI | 71001877 | Harness, Door Lock (lwr) | 11 |
|
- | ||||
| NI | 71001892 | Harness, Relay Board (j7) | 11 |
|
- | ||||
| NI | 71001861 | Harness, Convect | 11 |
|
- | ||||
| NI | 71002480 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- | ||||
| NI | 71001806 | Harness, Control (j10-upr) | 11 |
|
- |
