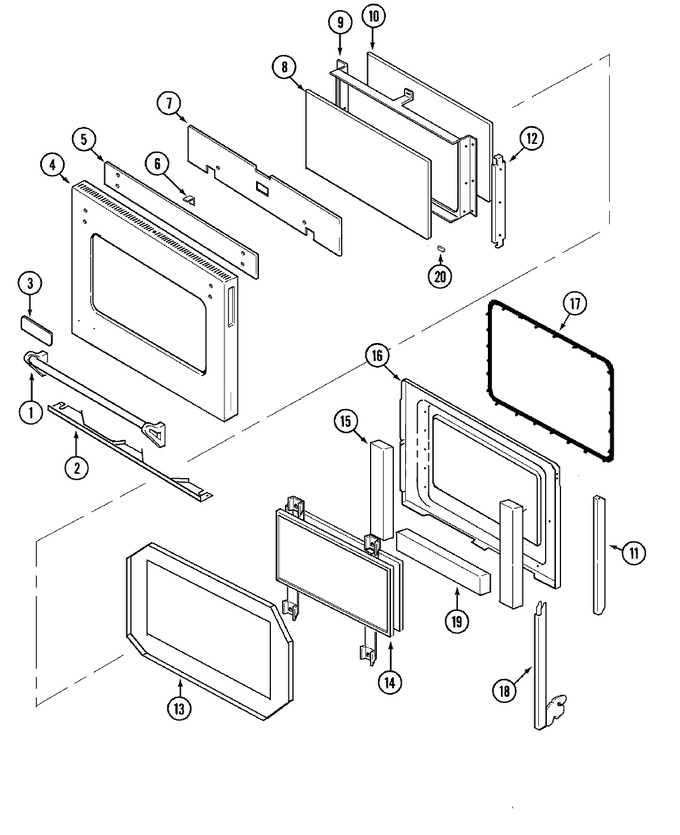

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001403 | Washer, Alum | 10 |
|
- | ||||
| 1 | 71002873 | Handle, Oven Door (chr) | 10 |
|
- | ||||
| 1 | WP488234 | Screw (Replaces: 71002965) | 10 |
|
$ 6.07 | ||||
| 2 | 71003183 | Trim, Door (lwr) | 10 |
|
- | ||||
| 3 | 7103P166-60 | Palnut (Replaces: 715500) | 10 |
|
$ 15.91 | ||||
| 3 | 7103P166-60 | Palnut (Replaces: 715500) | 16 |
|
$ 15.91 | ||||
| 3 | 74006889 | Nameplate (stl) | 17 |
|
$ 43.24 | ||||
| 3 | Y04100737 | Nameplate (stl) | 16 |
|
- | ||||
| 3 | 71001723 | Screw (10-24) | 10 |
|
- | ||||
| 3 | Y04100737 | Nameplate (stl) | 10 |
|
- | ||||
| 4 | WP488234 | Screw (Replaces: 71002965) | 10 |
|
$ 6.07 | ||||
| 4 | 71002866 | Panel, Door (stl) | 21 |
|
- | ||||
| 4 | 74006327 | Panel, Door (stls) | 16 |
|
- | ||||
| 4 | 71002866 | Panel, Door (stl) | 10 |
|
- | ||||
| 5 | 71002868 | Insulation, Door Panel | 10 |
|
- | ||||
| 6 | 71001831 | Plate, Latch | 10 |
|
- | ||||
| 6 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 7 | 71002593 | Sink, Heat | 10 |
|
- | ||||
| 8 | 71002800 | Glass, Outer | 10 |
|
- | ||||
| 9 | 71002867 | Bracket, Glass | 10 |
|
- | ||||
| 10 | 71002801 | Glass, Inner | 10 |
|
- | ||||
| 11 | 71002969 | Bracket, Door Filler | 10 |
|
- | ||||
| 12 | 74007833 | Clamp, Glass | 22 |
|
- | ||||
| 12 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 10 |
|
$ 9.48 | ||||
| 12 | 71002796 | Clamp, Glass | 10 |
|
- | ||||
| 12 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 22 |
|
$ 9.48 | ||||
| 13 | 71002864 | Retainer, Insulation | 10 |
|
- | ||||
| 14 | 74005639 | Window Assembly | 13 |
|
- | ||||
| 14 | WP7902P444-60 | Window Assembly (Replaces: 71002929) | 10 |
|
$ 147.26 | ||||
| 15 | 71001839 | Insulation, Door (side) | 10 |
|
- | ||||
| 16 | 74005615 | Liner, Oven Door | 13 |
|
- | ||||
| 16 | WPW10296816 | Screw (10-32x.625 Sq.hd.) (Replaces: 71001940) | 10 |
|
$ 6.77 | ||||
| 16 | 71002968 | Liner, Oven Door | 10 |
|
- | ||||
| 17 | WP71001970 | Seal, Door (Replaces: 71001970) | 10 |
|
$ 156.50 | ||||
| 18 | WP74008014 | Hinge, Oven Door (Replaces: 71002869) | 10 |
|
Immediately | $ 129.55 | |||
| 19 | 71001969 | Insulation, Door (btm) | 10 |
|
- |
