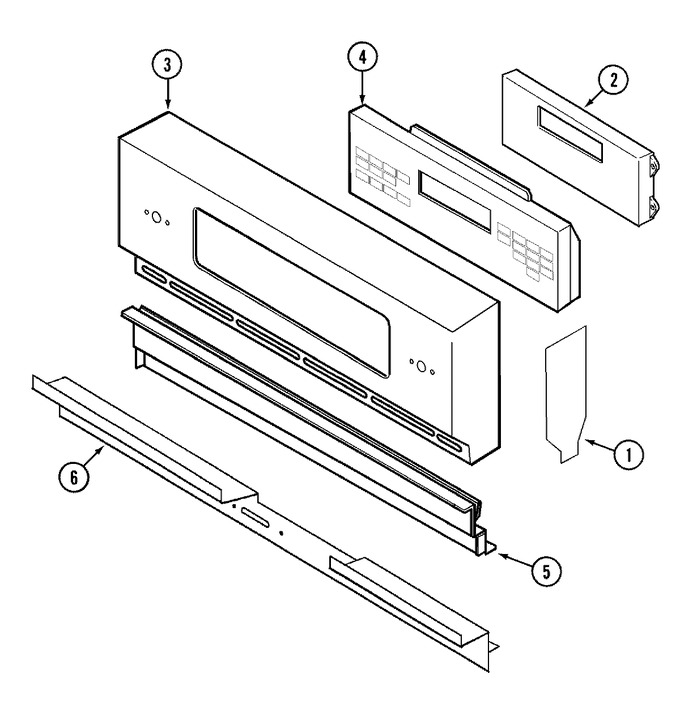

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002920 | Insulation, Control | 10 |
|
- | ||||
| 2 | WP71001872 | Clock (Replaces: 71001872) | 10 |
|
$ 390.49 | ||||
| 3 | 71002870 | Panel, Control | 10 |
|
- | ||||
| 4 | 71002871 | Switch Membrane Assy. | 10 |
|
- | ||||
| 5 | 71002921 | Bracket, Top Support | 10 |
|
- | ||||
| 6 | 71001946 | Trim, Control Panel (blk) | 10 |
|
- | ||||
| 6 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| NI | 704974 | Wire, Gray | 10 |
|
- | ||||
| NI | 71001807 | Harness, Supply (j1) | 10 |
|
- | ||||
| NI | 71001808 | Harness, Door Switch (upr) | 10 |
|
- | ||||
| NI | 71001809 | Harness, Door Lock (upr) | 10 |
|
- | ||||
| NI | 71001861 | Harness, Convect | 10 |
|
- | ||||
| NI | 71001875 | Harness, Control (j9-lwr) | 10 |
|
- | ||||
| NI | 71001876 | Harness, Door Switch (lwr) | 10 |
|
- | ||||
| NI | 71001877 | Harness, Door Lock (lwr) | 10 |
|
- | ||||
| NI | 71001892 | Harness, Relay Board (j7) | 10 |
|
- | ||||
| NI | 71001868 | Harness, Meat Probe | 10 |
|
- | ||||
| NI | 71002997 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 71002782 | Guide, Cooking | 10 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 10 |
|
- | ||||
| NI | 71001798 | Harness, Wire Control (j2) | 10 |
|
- | ||||
| NI | 71001806 | Harness, Control (j10-upr) | 10 |
|
- |
