Diagram for 01 - Body (ww27430pf,pg,pk,pr,pu)
01 - Body (ww27430pf,pg,pk,pr,pu)

Diagram for 02 - Control Panel (ww27430pf,pg,pk,pr,pu)
02 - Control Panel (ww27430pf,pg,pk,pr,pu)

Diagram for 03 - Door (ww27430pf,pg,pk,pr,pu)
03 - Door (ww27430pf,pg,pk,pr,pu)

Diagram for 04 - Internal Controls(ww27430pf,pg,pk,pr,pu)
04 - Internal Controls(ww27430pf,pg,pk,pr,pu)

Diagram for 05 - Oven (ww27430pf,pg,pk,pr,pu)
05 - Oven (ww27430pf,pg,pk,pr,pu)

Diagram for 06 - Wiring Information-ww27430pf,pg,pk,pr,pu
06 - Wiring Information-ww27430pf,pg,pk,pr,pu


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

1 71001950 Top (outer) 10 Appelez-nous -
2 71001878 Back, Outer (upr) 10 Appelez-nous -
2 71001883 Back, Outer (lwr) 10 Appelez-nous -
3 71002875 Trim, Side (lt-blk) 10 Appelez-nous -
3 71002876 Trim, Side (rt-blk) 10 Appelez-nous -
4 WPY706189 Screw   (Replaces: Y706189) 10 In-Stock Immediately $ 6.47

4 71002923 Trim, Bottom 10 Appelez-nous -
5 71001957 Panel (side-btm-side) 10 Appelez-nous -
6 71003185 Frame, Oven 10 Appelez-nous -
7 WP74008015 Receptacle, Hinge Assy.   (Replaces: 71001828) 10 Special Order $ 225.36

8 71001959 Back, Main (inner) 10 Appelez-nous -
9 71001815 Plate, Hinge Cover 10 Appelez-nous -
10 71001812 Plate, Hinge Trap 10 Appelez-nous -
11 71001989 Extrusion, Center 10 Appelez-nous -
12 71001960 Insulation (wrap) 10 Appelez-nous -
13 71001963 Insulation (btm) 10 Appelez-nous -
14 71002227 Insulation (top-back) 10 Appelez-nous -
15 Y04100669 Support (ctr) 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

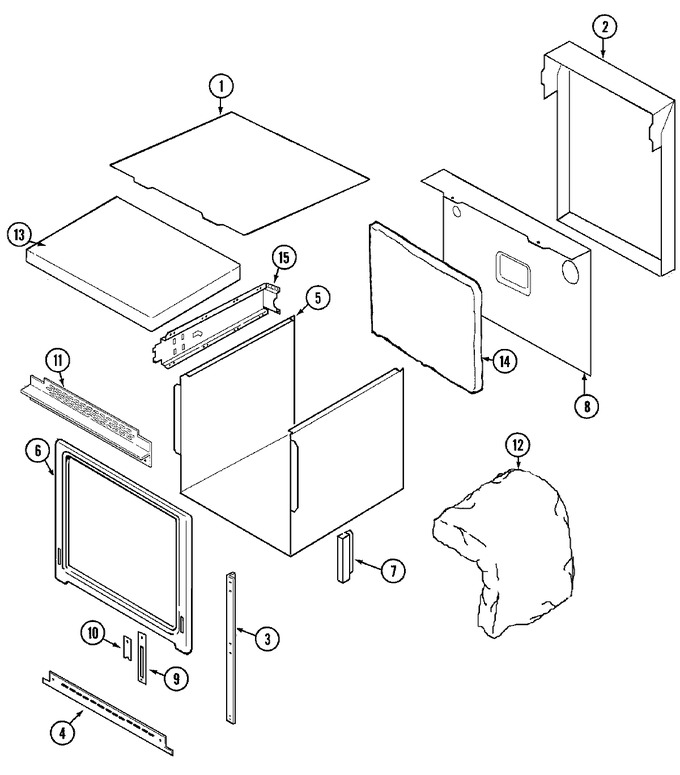

Diagram for WW27430PR
