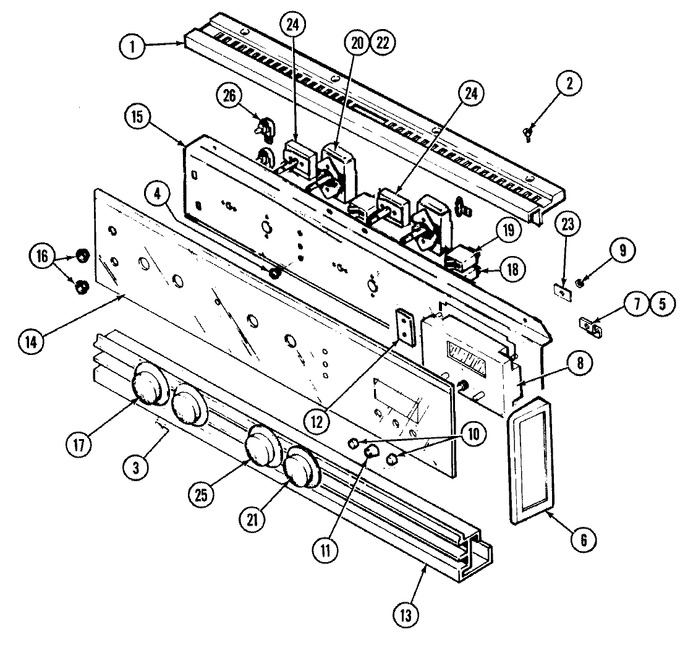

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100655 | Extrusion, Top | 11 |
|
- | ||||
| 2 | 712066 | Screw | 11 |
|
- | ||||
| 3 | 04100147 | Knob, Thermostat | 11 |
|
- | ||||
| 4 | Y700630 | Lens, Indicator Lights | 11 |
|
$ 4.18 | ||||
| 5 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 6 | 704258 | End Cap (rt-blk) | 11 |
|
- | ||||
| 6 | 704257 | End Cap (lt-blk) | 11 |
|
- | ||||
| 7 | 703676 | Bracket, Timer | 11 |
|
- | ||||
| 8 | 12200028CP | Clock Kit, Electronic (Replaces: 12200028) | 11 |
|
- | ||||
| 9 | 703679 | Palnut | 11 |
|
- | ||||
| 10 | WP7711P492-60 | Knob, Clock (sm/blk) (Replaces: Y704239) | 11 |
|
$ 12.13 | ||||
| 11 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 11 |
|
$ 12.13 | ||||
| 12 | 703269 | Bracket, Extrusion (lower) | 11 |
|
- | ||||
| 12 | WP74004005 | Screw (Replaces: Y708359) | 11 |
|
$ 6.95 | ||||
| 12 | 703277 | Plate, Cover | 11 |
|
- | ||||
| 13 | 704255 | Extrusion, Bottom (blk) | 11 |
|
- | ||||
| 14 | 04100148 | Glass, Control Panel | 11 |
|
- | ||||
| 15 | 705331 | Pad, Spacer | 11 |
|
- | ||||
| 15 | 705334 | Panel, Control | 11 |
|
- | ||||
| 16 | 704323 | Bezel, Switch | 11 |
|
- | ||||
| 17 | Y04100146 | Knob, Selector | 11 |
|
- | ||||
| 18 | Y702394 | Light, Indicator 240v | 11 |
|
- | ||||
| 19 | Y702393 | Light, Indicator-120v | 11 |
|
- | ||||
| 20 | Y04100511 | Thermostat | 11 |
|
- | ||||
| 20 | Y04100575 | Thermostat | 11 |
|
$ 214.97 | ||||
| 21 | 703917 | Knob, Thermostat | 11 |
|
$ 21.34 | ||||
| 22 | 71002058 | Screw (Replaces: Y702124) | 11 |
|
$ 5.82 | ||||
| 23 | 701609 | Angle, Attachment | 11 |
|
- | ||||
| 24 | 703079 | Selector-lower | 11 |
|
- | ||||
| 24 | 703077 | Switch, Selector Upper | 11 |
|
- | ||||
| 25 | 703901 | Knob, Selector Switch (blk) | 11 |
|
- | ||||
| 26 | 700558 | Switch, Light (push) | 11 |
|
- | ||||
| NI | 703280 | Harness-wire | 11 |
|
- | ||||
| NI | 04100656 | Harness | 11 |
|
- | ||||
| NI | 04100667 | Harness, Wire | 11 |
|
- | ||||
| NI | 04100659 | Wire, Resistor | 11 |
|
- | ||||
| NI | DE81-04412A | Wire, Pink (Replaces: 703090) | 11 |
|
$ 327.97 | ||||
| NI | DE81-09159A | Wire, Wire (Replaces: 703370) | 11 |
|
$ 313.88 | ||||
| NI | 703752 | Wire, Resistor Therm. | 11 |
|
- | ||||
| NI | 703089 | Wire, Tan | 11 |
|
- | ||||
| NI | WPW10339879 | Tie, Cable (Replaces: Y702105) | 11 |
|
$ 7.11 | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- | ||||
| NI | OU2410UA | Manual, Use & Care | 11 |
|
- |
