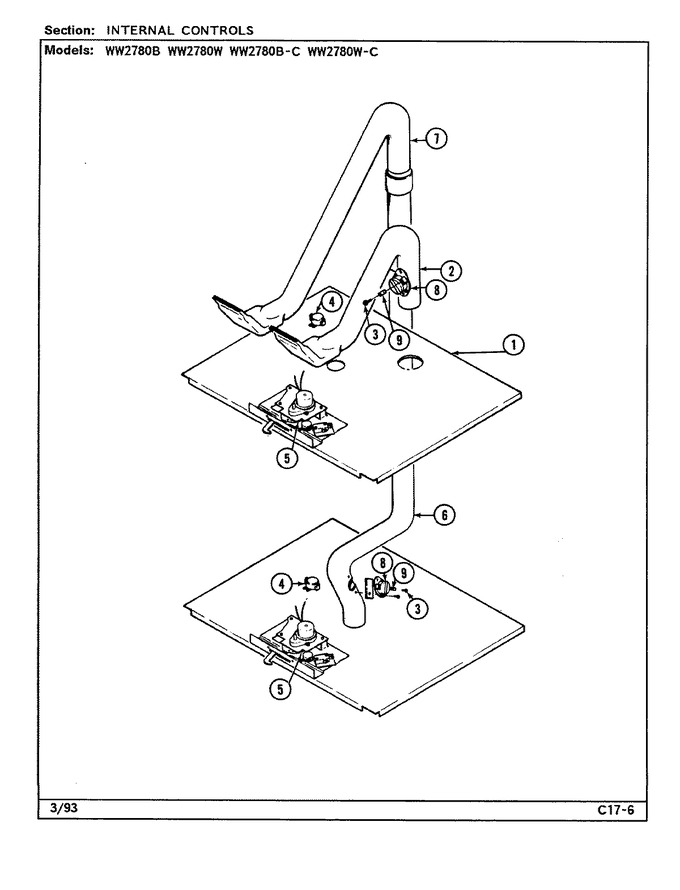

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100559 | Panel, Inner Top | 11 |
|
- | ||||
| 2 | 04100677 | Tube, Vent | 11 |
|
- | ||||
| 3 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 4 | 703259 | Limit, Thermostat | 11 |
|
- | ||||
| 5 | 12001109 | Kit, Latch | 11 |
|
- | ||||
| 5 | 12001108 | Kit, Latch | 11 |
|
- | ||||
| 6 | 04100678 | Tube, Vent | 11 |
|
- | ||||
| 6 | 04100660 | Tube, Vent | 11 |
|
- | ||||
| 7 | 704974 | Wire, Gray | 11 |
|
- | ||||
| 7 | Y04100259 | Adaptor | 11 |
|
- | ||||
| 7 | 04100661 | Tube, Vent (lwr Oven) | 11 |
|
- | ||||
| 7 | Y04100594 | Wire, Brown W/resistor | 11 |
|
- | ||||
| 7 | Y704801 | Harness, Wire Sensor | 11 |
|
- | ||||
| 7 | 704802 | Harness, Wire (lwr) | 11 |
|
- | ||||
| 7 | 705060 | Wire, Green | 11 |
|
- | ||||
| 7 | WPW10339879 | Tie, Cable (Replaces: 701678) | 11 |
|
$ 7.11 | ||||
| 8 | 703386 | Wire, Yellow | 11 |
|
- | ||||
| 8 | 701687 | Thermostat | 11 |
|
- | ||||
| 8 | 702993 | Limit, Oven | 11 |
|
- | ||||
| NI | Y702107 | Limit, Oven | 11 |
|
- | ||||
| NI | Y702750 | Limit, Fan | 11 |
|
- | ||||
| NI | 704922 | Bracket, Anti Short | 11 |
|
- | ||||
| NI | Y702711 | Terminal | 11 |
|
- |
