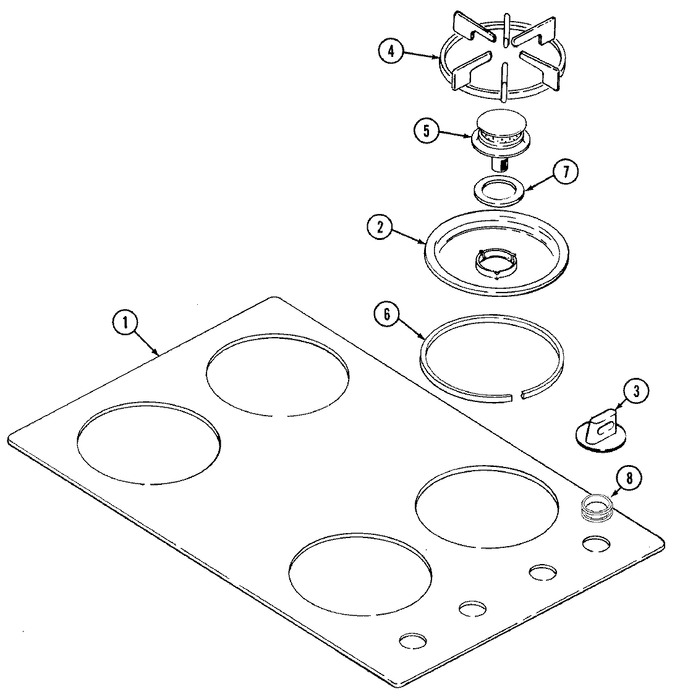

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003156 | Glass, Top (wht) | 21 |
|
- | ||||
| 1 | 74001211 | Glass, Main Top (wht) | 18 |
|
- | ||||
| 2 | 7101P314-60 | Screw | 18 |
|
- | ||||
| 2 | 74003153 | Bowl, Drip (wht) | 21 |
|
- | ||||
| 2 | 3424F002-85 | Bowl, Drip (wht) | 18 |
|
- | ||||
| 3 | 74001385 | Knob, Top Burner (wht) | 18 |
|
$ 23.24 | ||||
| 4 | 7518P024-60 | Grate, Rd (gray) | 18 |
|
- | ||||
| 5 | WP3412D024-26 | Sealed Burner Assy. (gry) (Replaces: 3412D018-26) | 18 |
|
Immediately | $ 90.27 | |||
| 5 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 18 |
|
$ 6.98 | ||||
| 5 | 5111A610-60 | Wire, Igniter - R | 18 |
|
- | ||||
| 5 | 5111A261-60 | Wire, Igniter - R | 18 |
|
- | ||||
| 5 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner) | 18 |
|
- | ||||
| 6 | W10896751 | Washer (Replaces: 7109P036-60) | 18 |
|
- | ||||
| 6 | 12400041 | Seal, Tape | 18 |
|
$ 48.39 | ||||
| 7 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 18 |
|
Immediately | $ 92.69 | |||
| 8 | 8008P039-60 | Grommet, Glass | 18 |
|
- | ||||
| NI | 12400039 | Tape Kit (blk) Foam 112`` | 18 |
|
- | ||||
| NI | 12400017 | Tape Kit (wht) Foam 112`` | 18 |
|
- | ||||
| NI | 12001208 | Kit, Tape Foam 1/2``x 112`` | 18 |
|
- | ||||
| NI | 74001205 | Manual, Use & Care | 18 |
|
- |
