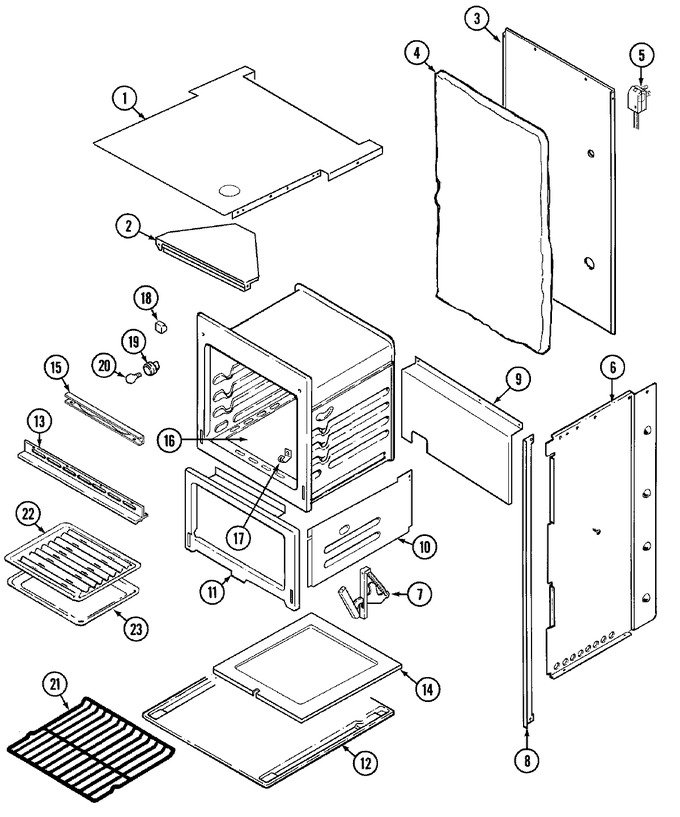

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204425		Cover Box Wall Oven   (Replaces: 4005F152-51)	10	Appelez-nous	-
1	7401P037-60		Block, Terminal	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	8008P004-60		Grommet	10	Appelez-nous	-
2	4006W077-19		Box, Flue Assy	10	Appelez-nous	-
2	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	74001914		Back, Main	10	Appelez-nous	-
4	74001849		Insulation, Top & Back	10	Appelez-nous	-
4	74001917		Insulation, Wrapper	10	Appelez-nous	-
5	74001926		Cord, Power	10	Appelez-nous	-
6	74001915		Panel, Side (lt)	10	Appelez-nous	-
6	74001916		Panel, Side (rt)	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74001920		Hinge Assy. (lwr)	10	Appelez-nous	-
7	74001856		Hinge Assy.	10			$ 123.16
7	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
8	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	10		Immediately	$ 12.62
8	74001940		Extrusion, Side (rt-chr)	10	Appelez-nous	-
8	74001941		Extrusion, Side (lt-chr)	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	74001921		Broiler, Back	10	Appelez-nous	-
10	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	10			$ 6.47
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74001923		Broiler, Side (rt)	10	Appelez-nous	-
10	74001922		Broiler, Side (lt)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74001924		Extension, Oven Front	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74001925		Base, Main	10	Appelez-nous	-
13	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	10		Immediately	$ 12.62
13	74001859		Extrusion, Bottom (chr)	10	Appelez-nous	-
14	2205F005-19		Bottom, Oven	10	Appelez-nous	-
15	WP7101P126-60		Screw   (Replaces: 7101P261-60)	10		Immediately	$ 6.85
15	5720A011-23		Support, Oven Bottom	10	Appelez-nous	-
16	74001927		Bottom, Oven (upper)	10	Appelez-nous	-
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	10		Immediately	$ 11.07
17	4005F011-35		Cover, Cap Hole	10	Appelez-nous	-
18	8003P009-60		Bumper, Door (square)	10	Appelez-nous	-
19	7408P035-60		Receptacle, Oven Bulb	10			$ 30.71
20	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
21	7801P005-60		Rack	10	Appelez-nous	-
22	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
23	Y3401F02019		Pan, Broil	10	Appelez-nous	-
