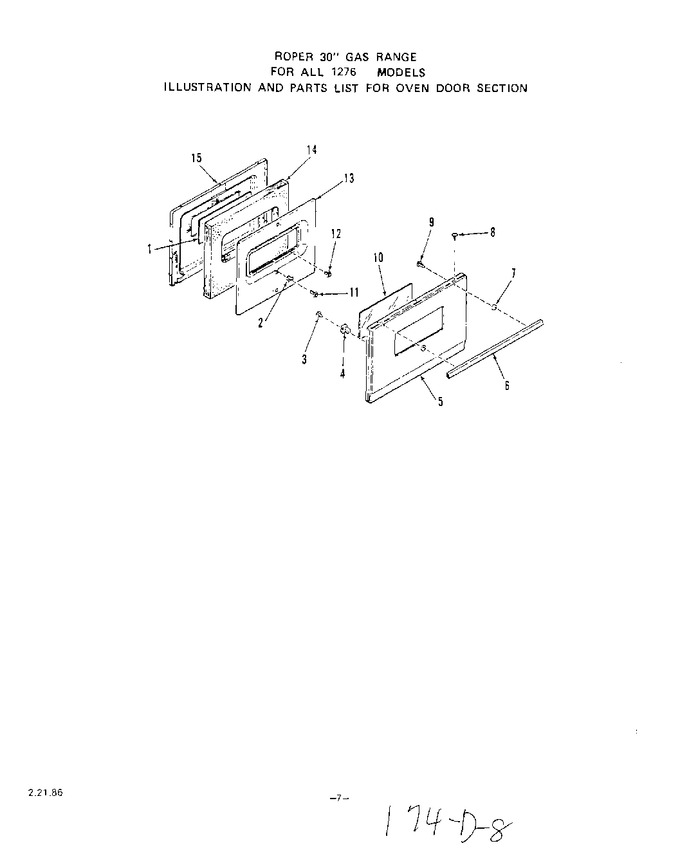

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 326010 | Inner Glass-oven Door |
|
- | |||||
| 2 | 327269 | Spacer |
|
- | |||||
| 3 | 239113 | Screw 10-32x3/8`` |
|
- | |||||
| 4 | 299592 | Retainer-door Glass (2 Req) |
|
- | |||||
| 5 | 325968 | Front Panel-oven Door |
|
- | |||||
| 6 | 292240 | Handle-oven Door |
|
- | |||||
| 7 | 302343 | Spacer-door Handle |
|
- | |||||
| 8 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 9 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 10 | 326090 | Outer Glass-oven Door |
|
- | |||||
| 11 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 12 | 104520 | Screw 10-32 X 17/32`` |
|
- | |||||
| 13 | 325996 | Insulation Retainer-oven Door |
|
- | |||||
| 14 | 325999 | Insulation |
|
- | |||||
| 15 | 331743 | Lining-oven Door |
|
- |
