Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13525 Assy,bolt Appelez-nous -
2 13523 Insulator Appelez-nous -
3 Y00000000 See Note Clutch Assembly Appelez-nous -
4 13533 Solenoid Appelez-nous -
5 C13532 Bolt   (Replaces: 13532) In-Stock Immediately $ 28.79

6 13531 Assy,lever Appelez-nous -
7 Y00000000 See Note Ground Wire, Green Appelez-nous -
8 13646 Motor Appelez-nous -
9 13655 Capacitor Appelez-nous -
10 13521 Pulley,motor Special Order $ 96.62

11 DD81-03542A Belt,v   (Replaces: 13520) Special Order $ 566.41


    View Diagram in Separate Window     Print Icon   Print Part List

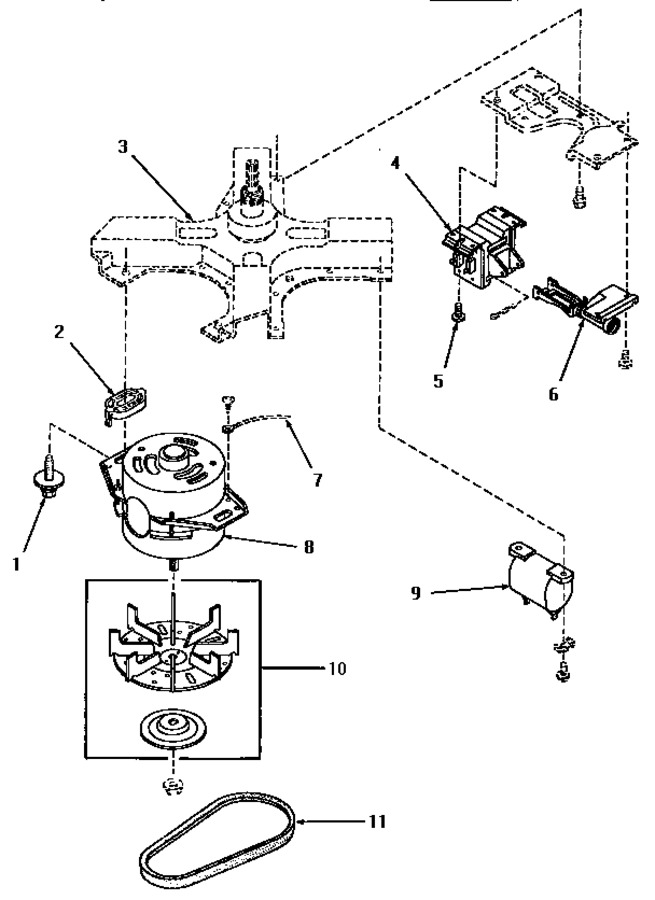

Diagram for YA1200
