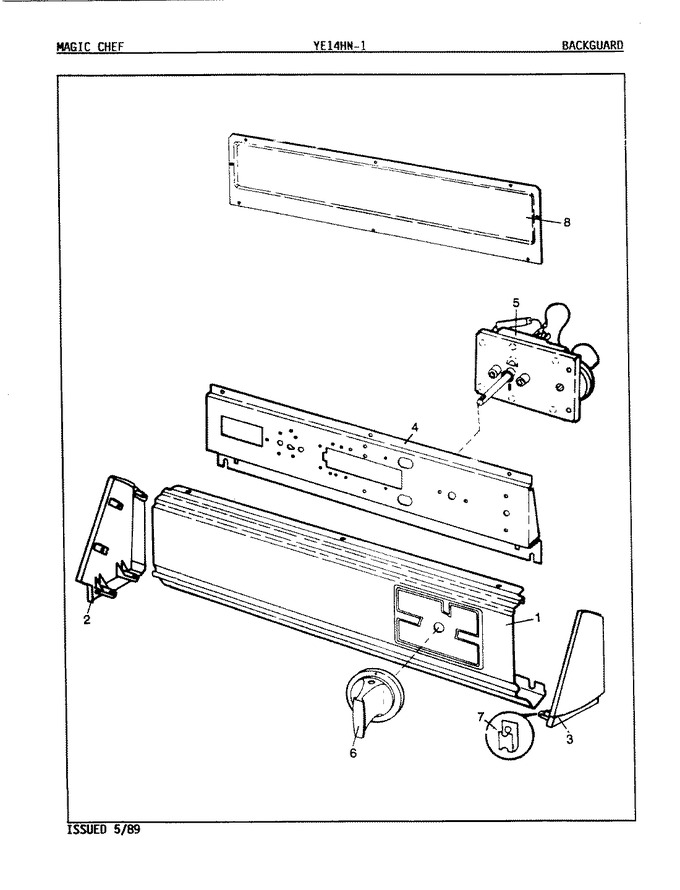

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	53-1278		Control Panel		Appelez-nous	-
1	25-7649		Screw		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
2	53-0279		Trim, End Cap (rt)		Appelez-nous	-
3	25-7760		Screw		Appelez-nous	-
3	53-0264		Rh Endcap		Appelez-nous	-
3	53-0277		Trim, End Cap (rt)		Appelez-nous	-
4	53-0365		Control Shield		Appelez-nous	-
4	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
5	53-0635		Timer Motor		Appelez-nous	-
5	53-1547		Timer	C	Appelez-nous	-
5	25-0289		Screw		Appelez-nous	-
5	53-1301		Timer		Appelez-nous	-
6	53-1529		Timer Knob & Skirt Assy		Appelez-nous	-
6	25-6044		Set Screw		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	34-9487		Plate, Reinforcement		Appelez-nous	-
8	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
8	25-7697		Screw		Appelez-nous	-
8	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
8	53-0268		Rear Shield		Appelez-nous	-
8	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
9	53-1040		Manual, Use & Care		Appelez-nous	-
