SELECT A DIAGRAM

01 - Cabinet (ye205kgv)

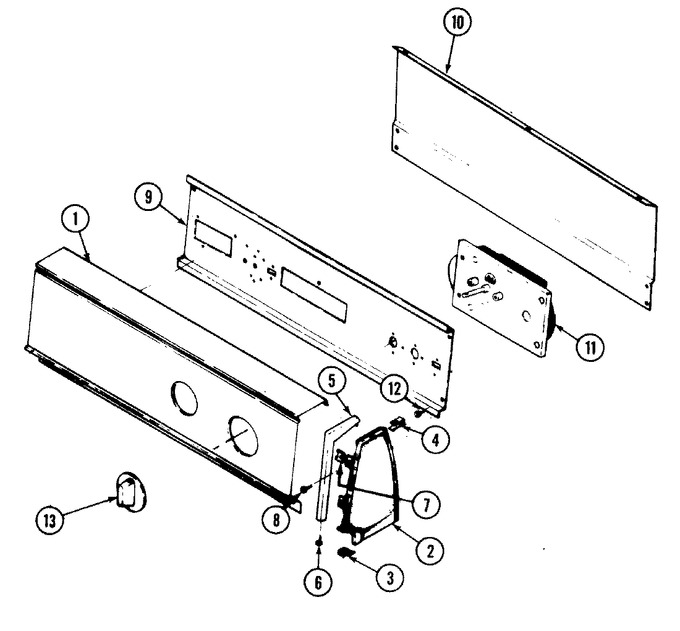

02 - Control Panel (ye205kgv)


03 - Door (ye205kgv)


04 - Heater (ye205kgv)


05 - Motor & Drive (ye205kgv)


06 - Tumbler (ye205kgv)


07 - Wiring Information (ye205kgv)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001014		Panel, Control		Appelez-nous	-
2	35-2668		Cap, End (rt)(wht)		Appelez-nous	-
2	25-7649		Screw		Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	35-2669		Cap, End (lt)(wht)		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
5	53-2411		End Trim L.h. (wht)		Appelez-nous	-
5	53-2410		End Trim R.h. (wht)		Appelez-nous	-
5	31001054		Trim, Endcap (rt Wht)	11	Appelez-nous	-
5	31001055		Trim, Endcap (lt Wht)	11	Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-1676		Shield, Control		Appelez-nous	-
9	31001128		Shield, Control	11	Appelez-nous	-
9	53-2504		Spacer, Control Shield		Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
11	53-1812		Timer		Appelez-nous	-
11	31001069		Resistor Assy.	A/10	Appelez-nous	-
12	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
13	53-2502		Knob & Skirt Assy.		Appelez-nous	-
14	31001022		Manual, Use & Care		Appelez-nous	-
14	31001050		Manual, Use & Care		Appelez-nous	-
15	16000329		Guide, Quick Ref. - Magic Chef		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
