SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical, Literature


05 - Oven Door And Drawer


06 - Backguard


07 - Cooktop

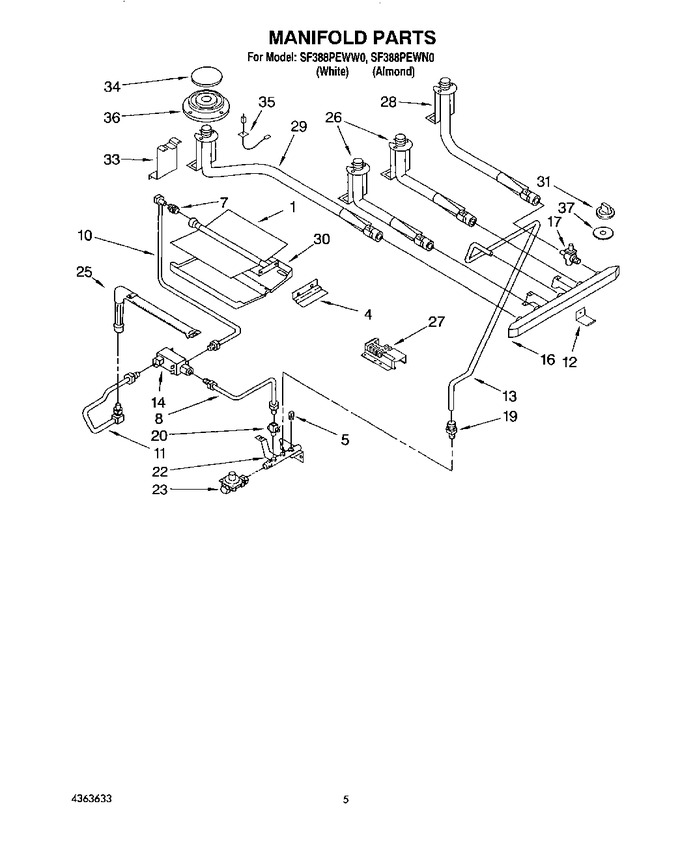

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786753		Nut		Appelez-nous	-
1	4320907		Burner, Broiler		Appelez-nous	-
4	4363530		Screw		Appelez-nous	-
4	4320888		Support, Burner Mounting		Appelez-nous	-
5	W10295523		Pipe Plug, 1/8 Npt   (Replaces: 786545)		Appelez-nous	-
7	4320926		Natural Gas No. 51.		Appelez-nous	-
8	4363529		Tubing, (inlet To Gas Valve)		Appelez-nous	-
10	4320925		Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner)		Appelez-nous	-
10	786741		Nut, Lock		Appelez-nous	-
11	786741		Nut, Lock		Appelez-nous	-
11	4320315		Hood & Tubing Assembly (gas Valve To Lower Oven Burner)		Appelez-nous	-
12	4363593		Bracket, Manifold		Appelez-nous	-
13	4320313		Tubing (inlet To Manifold)		Appelez-nous	-
14	4320316		Valve, Dual Gas Valve		Appelez-nous	-
16	4363533		Manifold		Appelez-nous	-
17	4179116		Valve, Top Burner (screw)		Appelez-nous	-
17	4363520		Valve, Top Burner (r.f. & L.r.)		Appelez-nous	-
17	4363521		Valve, Top Burner (l.f. & R.r.)		Appelez-nous	-
17	4320326		Valve, Top Burner (switch Ignitor)		Appelez-nous	-
19	4362560		Fitting		Appelez-nous	-
20	4363534		Valve, Shut-off		Appelez-nous	-
22	4362561		Inlet, Gas		Appelez-nous	-
23	786313		Regulator, Pressure		Appelez-nous	-
25	786314		Oven Burner, Lower		Appelez-nous	-
26	4362562		Venturi Tube		Appelez-nous	-
27	4363532		Shield, Broiler Ignitor		Appelez-nous	-
28	4362564		Venturi Tube R.r.		Appelez-nous	-
29	4362565		Venturi Tube L.r.		Appelez-nous	-
30	4179139		Reflector		Appelez-nous	-
31	4320722		Knob, Top Burner (4)		Appelez-nous	-
33	4363620		Bracket		Appelez-nous	-
34	4363490		Burner Cap (large)		Appelez-nous	-
34	4363489		Burner Cap (small)		Appelez-nous	-
35	4363540		Electrode (4)		Appelez-nous	-
36	4363592		Burner, Cast (small (2))		Appelez-nous	-
36	4363591		Burner, Cast (large (2))		Appelez-nous	-
37	4363627		Shield		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
