SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold


04 - Oven Electrical, Literature


05 - Oven Door And Drawer


06 - Backguard

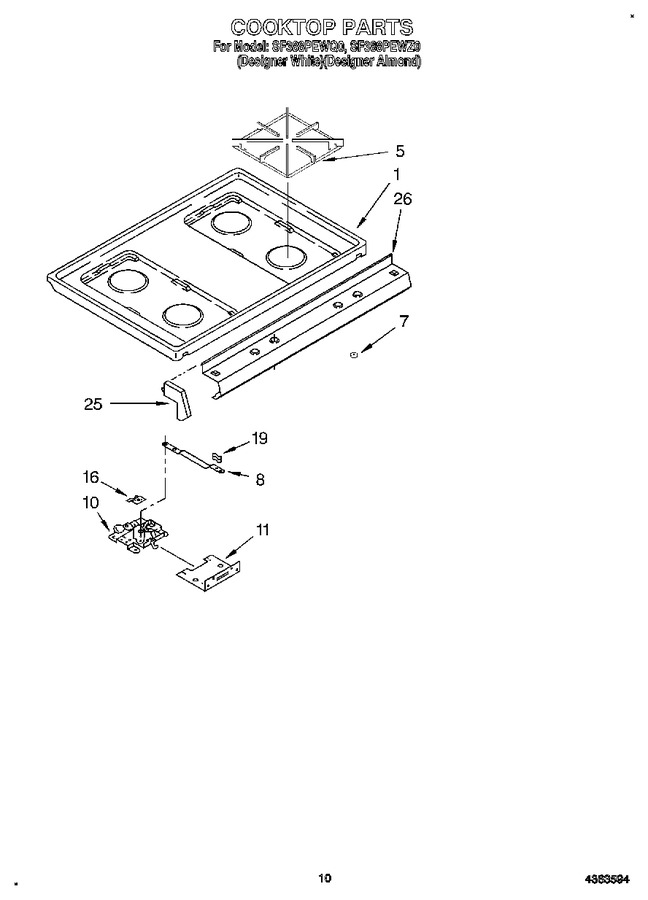

07 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363224		Top, Main (almond)		Appelez-nous	-
1	4363223		Top, Main (white)		Appelez-nous	-
5	4363463		Grate, Top ((white Model))		Appelez-nous	-
5	4362614		Grate, Top ((almond Model) Burner (4))		Appelez-nous	-
7	786342		Spacer, Nylon (4)		Appelez-nous	-
8	4363599		Handle, Latch (almond)		Appelez-nous	-
8	4363598		Handle, Latch (white)		Appelez-nous	-
10	786303		Latch Assembly		Appelez-nous	-
10	4363528		Screw		Appelez-nous	-
11	4315774		Bracket, Latch Mounting		Appelez-nous	-
16	4362570		Bracket, Switch		Appelez-nous	-
16	786752		Screw		Appelez-nous	-
19	4320977		Knob, Latch Handle (white)		Appelez-nous	-
19	4363597		Knob, Latch Handle (almond)		Appelez-nous	-
25	4363474		End Cap (almond, Rh)		Appelez-nous	-
25	4363473		End Cap (white, Rh)		Appelez-nous	-
25	4363472		End Cap (white, Lh)		Appelez-nous	-
25	4363475		End Cap (almond, Rh)		Appelez-nous	-
26	4363562		Panel, Control (white)		Appelez-nous	-
26	4363600		Panel, Control (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
