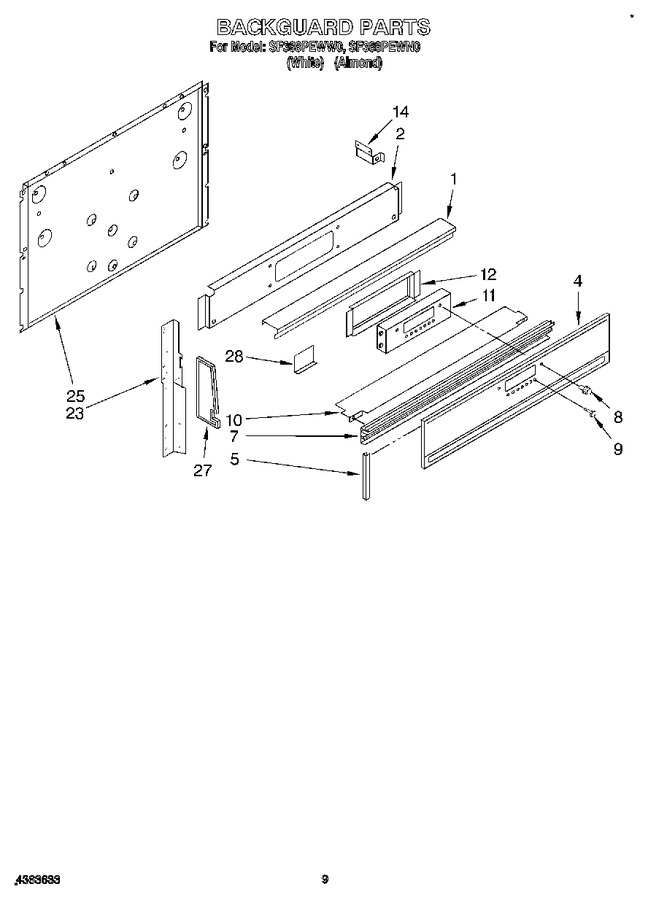

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363011		Trim, Top		Appelez-nous	-
1	786761		Screw		Appelez-nous	-
1	WP965173		Screw   (Replaces: 786223)			Immediately	$ 9.65
1	786762		Screw		Appelez-nous	-
2	4363465		Panel, Control Mounting		Appelez-nous	-
4	4363640		Glass, Control Panel		Appelez-nous	-
5	786760		Channel, Glass		Appelez-nous	-
7	4320870		Trim, Lower		Appelez-nous	-
8	4363509		Knob, Clock		Appelez-nous	-
9	4363512		Knob, Set Button		Appelez-nous	-
10	4363566		Screw		Appelez-nous	-
10	4363565		Shield, Heat		Appelez-nous	-
11	4363564		Electronic Range Control		Appelez-nous	-
12	4320878		Bracket, Electronic Range Control		Appelez-nous	-
14	786701		Support, Lamp Socket (left Side)		Appelez-nous	-
14	786702		Support, Lamp Socket (right Side)		Appelez-nous	-
23	4363522		Support, Control Panel (2) (l.h.)		Appelez-nous	-
23	4363523		Support, Control Panel (2) (r.h.)		Appelez-nous	-
25	4315785		Plate, Rear Cover		Appelez-nous	-
27	4320872		End Cap (r.h.)		Appelez-nous	-
27	4320873		End Cap (l.h.)		Appelez-nous	-
28	4363569		Bottom, Flue Box		Appelez-nous	-
