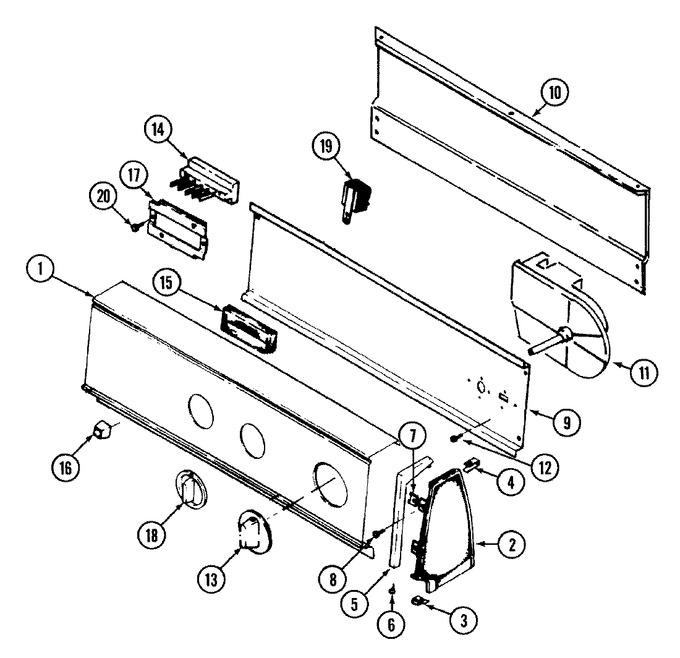

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-2475 | Panel, Control |
|
- | |||||
| 2 | 25-7649 | Screw |
|
- | |||||
| 2 | 35-2668 | Cap, End (rt)(wht) |
|
- | |||||
| 2 | 35-2669 | Cap, End (lt)(wht) |
|
- | |||||
| 2 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 4 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 5 | 53-2411 | End Trim L.h. (wht) |
|
- | |||||
| 5 | 53-2410 | End Trim R.h. (wht) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 8 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 9 | 53-1678 | Control Shield |
|
- | |||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 10 | 35-2688 | Shield, Control Panel (rear) |
|
- | |||||
| 11 | 53-1816 | Timer |
|
- | |||||
| 12 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 13 | 53-2502 | Knob & Skirt Assy. |
|
- | |||||
| 14 | 53-2416 | Switch, 5 Pushbutton |
|
- | |||||
| 14 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 15 | 35-3394 | Pad, Switch |
|
- | |||||
| 16 | 35-3191 | Pushbutton (wht) |
|
- | |||||
| 17 | 33-6621 | Bracket, Switch |
|
- | |||||
| 18 | 35-3961 | Knob, Selector |
|
- | |||||
| 19 | 53-1666 | Buzzer - Adjustable |
|
- | |||||
| 19 | 26-3092 | Screw |
|
- | |||||
| 20 | 25-7712 | Screw |
|
- | |||||
| 21 | 31001050 | Manual, Use & Care |
|
- | |||||
| 22 | 53-2489 | Manual, Use & Care |
|
- | |||||
| 23 | 16000329 | Guide, Quick Ref. - Magic Chef |
|
- |
