SELECT A DIAGRAM

02 - Internal Oven


03 - External Oven


04 - Manifold

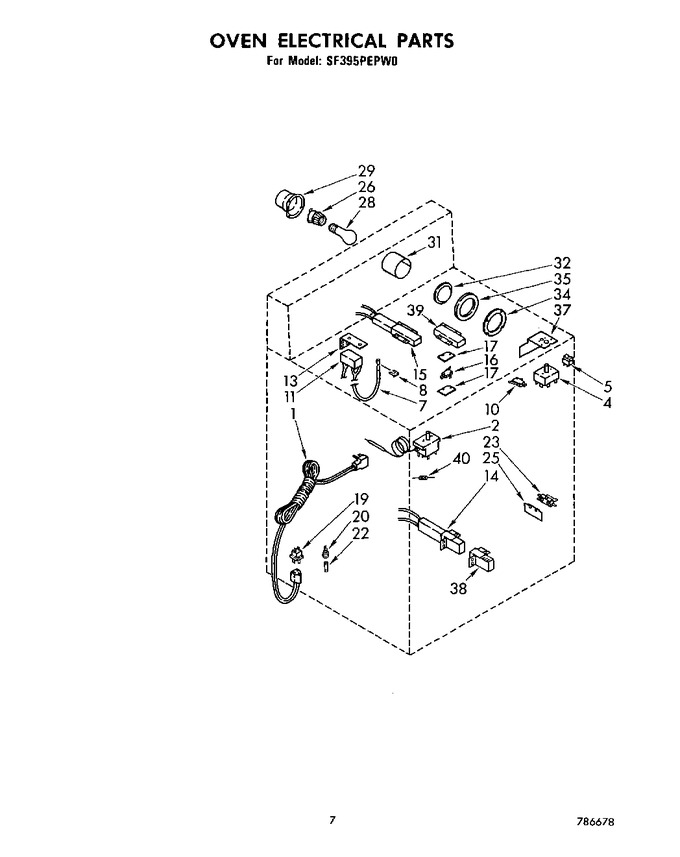

05 - Oven Electrical


06 - Oven Door And Drawer


07 - Drawer (for 2 Track System)


08 - Backguard, Lit/optional


09 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786578		Cord, Power		Appelez-nous	-
2	786318		Thermostat, Oven		Appelez-nous	-
2	786744		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
4	786319		Switch, Selector		Appelez-nous	-
5	786325		Switch, Fluorescent Light (2)		Appelez-nous	-
7	786320		Ignitor, Top (r.h.)		Appelez-nous	-
7	786321		Ignitor, Top (l.h.)		Appelez-nous	-
8	WPY0070927		Mounting Clip, Electrode (2)   (Replaces: 786580)				$ 6.85
10	786259		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
10	786322		Switch, Top Burner Actuator		Appelez-nous	-
10	786260		Nut		Appelez-nous	-
11	786323		Module, Spark		Appelez-nous	-
13	786581		Bracket, Spark Module		Appelez-nous	-
14	786324		Kit, Ignitor   (Replaces: 786659)			Immediately	$ 60.68
15	786324		Ignitor, Broil   (Replaces: 786660)			Immediately	$ 60.68
16	786751		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
16	786669		Switch, Oven Door Latch		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
19	786570		Plug, Male		Appelez-nous	-
20	786584		Holder, Fuse		Appelez-nous	-
22	786585		Fuse		Appelez-nous	-
23	786587		Switch, Aux. Light		Appelez-nous	-
25	786588		Insulation, Door Switch (2)		Appelez-nous	-
26	786653		Socket, Oven Lamp		Appelez-nous	-
28	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
29	786743		Housing, Oven Light		Appelez-nous	-
31	786573		Retainer, Insulation		Appelez-nous	-
32	786574		Lens, Oven Light		Appelez-nous	-
34	786575		Retainer, Oven Light Lens		Appelez-nous	-
35	786576		Gasket, Oven Light		Appelez-nous	-
37	786689		Insulation (2)		Appelez-nous	-
38	786801		Bracket, Bake Ignitor		Appelez-nous	-
39	786543		Bracket, Broil Ignitor		Appelez-nous	-
40	4157542		Resistor, 10 K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
