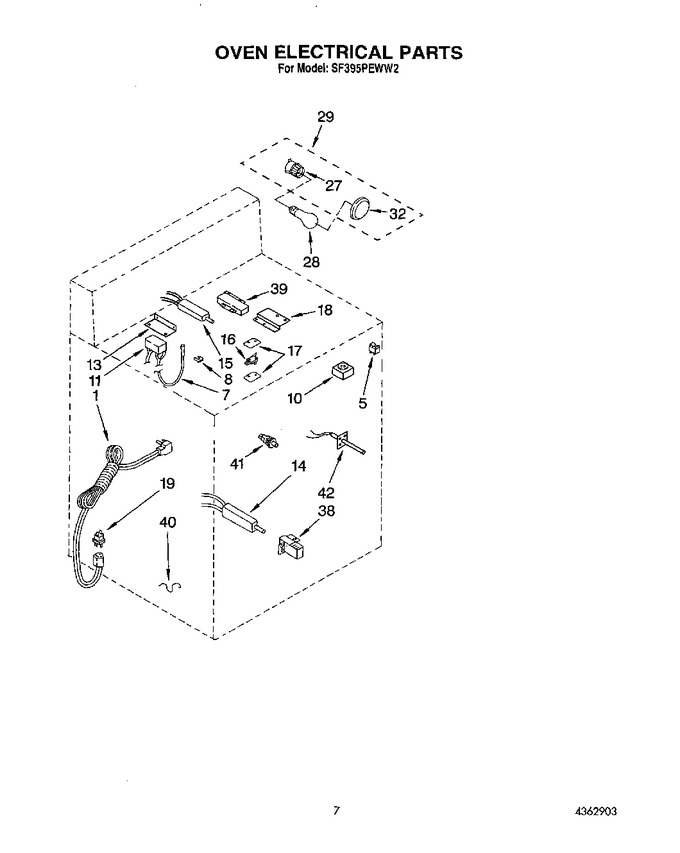

05 - Oven Electrical


06 - Oven Door And Drawer


07 - Backguard, Lit/optional


08 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786578		Cord, Power		Appelez-nous	-
5	786325		Switch, Fluorescent Light (2)		Appelez-nous	-
7	4315260		Ignitor, Top (l.h.)		Appelez-nous	-
7	4315261		Ignitor, Top (r.h.)		Appelez-nous	-
8	WPY0070927		Mounting Clip, Electrode (2)   (Replaces: 786580)				$ 6.85
10	4320326		Switch, Top Burner Actuator		Appelez-nous	-
10	786259		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
10	786260		Nut		Appelez-nous	-
11	4320867		Spark Module		Appelez-nous	-
13	4320892		Bracket, Spark Module		Appelez-nous	-
14	786324		Kit, Ignitor   (Replaces: 786659)			Immediately	$ 60.68
15	786324		Ignitor, Broil   (Replaces: 4179150)			Immediately	$ 60.68
15	786753		Nut (2)		Appelez-nous	-
15	WP486754		Screw (2)   (Replaces: 4320376)				$ 6.75
16	4362916		Switch, Oven Door Latch		Appelez-nous	-
16	786751		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
18	4362934		Bracket, Broil Ignitor		Appelez-nous	-
19	786570		Plug, Male		Appelez-nous	-
27	WP965173		Socket, Light Oven   (Replaces: 786745)			Immediately	$ 9.65
28	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
29	WP74011278		Housing, Oven Light   (Replaces: 4320323)				$ 101.56
32	WP74011278		Lens, Oven Light   (Replaces: 4320959)				$ 101.56
38	786801		Bracket, Bake Ignitor		Appelez-nous	-
39	786543		Bracket, Broil Ignitor		Appelez-nous	-
40	4179338		Clip, Wire		Appelez-nous	-
41	4179328		Switch, Oven Door		Appelez-nous	-
42	4320772		Sensor, Erc		Appelez-nous	-
