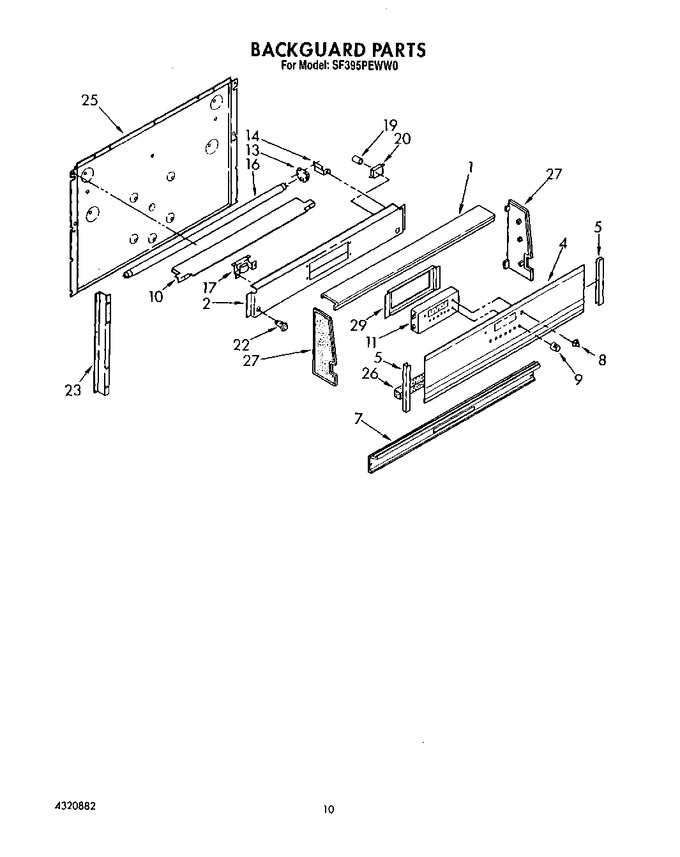

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320871		Frame		Appelez-nous	-
2	4320868		Panel, Control Mounting		Appelez-nous	-
4	4320869		Glass, Control Panel		Appelez-nous	-
5	786760		Channel, Glass		Appelez-nous	-
7	4320870		Trim, Lower		Appelez-nous	-
8	4320876		Knob, Timer (1)		Appelez-nous	-
9	4320877		Knob, Set (8)		Appelez-nous	-
10	4320874		Shield, Heat		Appelez-nous	-
10	4320393		Screw (2)		Appelez-nous	-
11	4320735		Erc (includes Knobs)		Appelez-nous	-
11	4320808		Circuit Board		Appelez-nous	-
13	786536		Socket, Fluorescent Light (2)		Appelez-nous	-
14	786701		Support, Lamp Socket (left Side)		Appelez-nous	-
14	786702		Support, Lamp Socket (right Side)		Appelez-nous	-
16	786539		Lamp, Fluorescent		Appelez-nous	-
17	786540		Ballast, 60 Hz.		Appelez-nous	-
19	786541		Starter, Fluorescent Light		Appelez-nous	-
20	786542		Socket, Starter		Appelez-nous	-
22	4179335		Light, Indicator (2)		Appelez-nous	-
23	786458		Support, Control Panel (2)		Appelez-nous	-
23	4315796		L.h.		Appelez-nous	-
23	4315795		R.h.		Appelez-nous	-
25	4315785		Plate, Rear Cover		Appelez-nous	-
26	4315979		Insulation, Backguard		Appelez-nous	-
27	4320872		End Cap (r.h.)		Appelez-nous	-
27	4320873		End Cap (l.h.)		Appelez-nous	-
29	4320878		Bracket, Erc		Appelez-nous	-
	LIT4315756		Anti-tip Kit		Appelez-nous	-
	LIT4320882		List, Repair Parts		Appelez-nous	-
	LIT786302		Guide, Cooking		Appelez-nous	-
	LIT4179331		Instructions, Installation		Appelez-nous	-
	LIT4157727		Guide, Use & Care		Appelez-nous	-
