SELECT A DIAGRAM

01 - Backguard


02 - Cylinder & Drive


03 - Heater

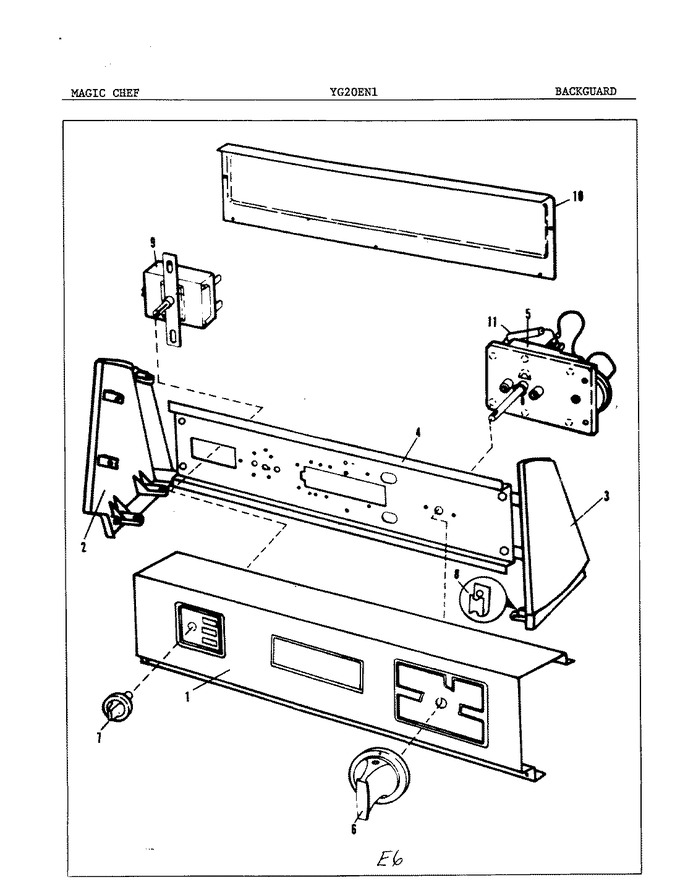

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	53-0831		Control Panel		Appelez-nous	-
1	25-7649		Screw		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
3	25-7760		Screw		Appelez-nous	-
3	53-0264		Rh Endcap		Appelez-nous	-
3	53-0277		Trim, End Cap (rt)		Appelez-nous	-
3	53-0278		Trim, End Cap (lt)		Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
4	53-0323		Control Shield		Appelez-nous	-
4	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
5	63-5685		Timer Motor		Appelez-nous	-
5	53-0660		Timer	B	Appelez-nous	-
5	53-0498		Timer		Appelez-nous	-
5	WP489483		Screw   (Replaces: 25-0088)				$ 9.78
6	53-0653		Knob	B	Appelez-nous	-
6	25-6044		Set Screw		Appelez-nous	-
6	53-0495		Timer Knob		Appelez-nous	-
7	53-0543		Switch Asm		Appelez-nous	-
8	35-0385		Pushbutton		Appelez-nous	-
9	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	25-7712		Screw		Appelez-nous	-
9	33-6621		Bracket, Switch		Appelez-nous	-
10	35-0168		Selector Knob		Appelez-nous	-
11	63-6731		Buzzer		Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
12	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
13	53-0346		Switch, Wrinkle Out		Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
14	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
14	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
14	34-9487		Plate, Reinforcement		Appelez-nous	-
14	53-0268		Rear Shield		Appelez-nous	-
14	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
14	25-7697		Screw		Appelez-nous	-
15	63-6743		Resistor Assy.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
