02 - Cabinet Parts
03 - Electrical Parts
04 - System Parts
05 - Air Handling Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

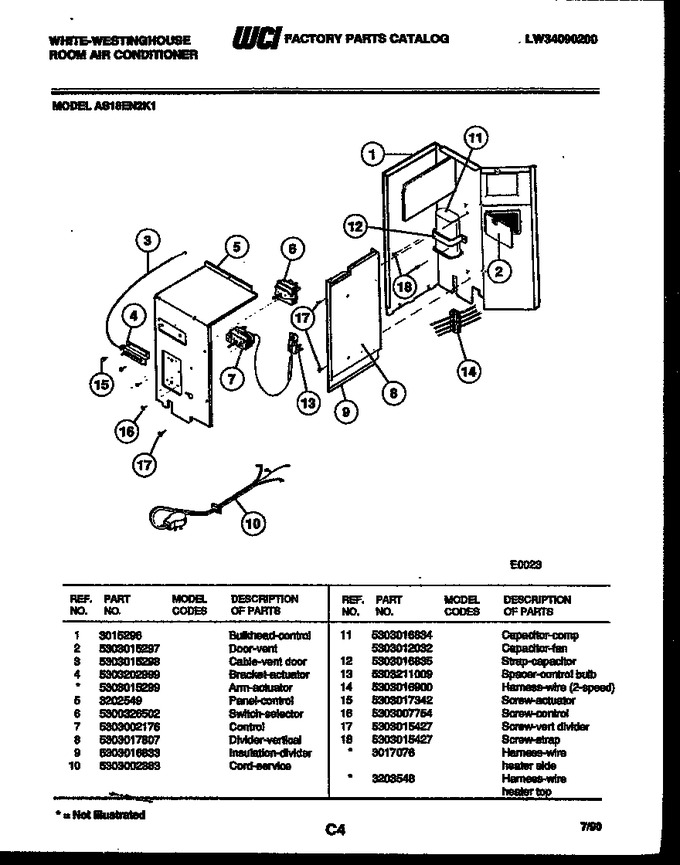

| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 5 | 3202549 | Panel - Control |
|
- | |||||
| 6 | 5300326502 | Switch-selector |
|
- | |||||
| 7 | 5303002176 | Control |
|
- | |||||
| 8 | 5303017807 | Divider - Vertical |
|
- | |||||
| 9 | 5303016833 | Insulation-divider |
|
- | |||||
| 10 | 5303002363 | Cord-service |
|
- | |||||
| 11 | 5303016834 | Capacitor-comp |
|
- | |||||
| 12 | 5303016835 | Strap-capacitor |
|
- | |||||
| 13 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 14 | 5303016900 | Harness-wire (2-speed) |
|
- | |||||
| 15 | 5303017342 | Screw-actuator |
|
- | |||||
| 16 | 5303007754 | Screw-control |
|
- | |||||
| 17 | 5303015427 | Screw-vert Divider |
|
- | |||||
| 18 | 5303015427 | Screw-strap |
|
- | |||||
| *33488 | 3017076 | Harness-wire Heater Side |
|
- | |||||
| *33488 | 3203548 | Harness-wire Heater Top |
|
- | |||||
| 11A | 5303012032 | Capacitor-fan |
|
- | |||||
| 4A | 5303015299 | Arm-actuator (non-illustrated) |
|
- |
