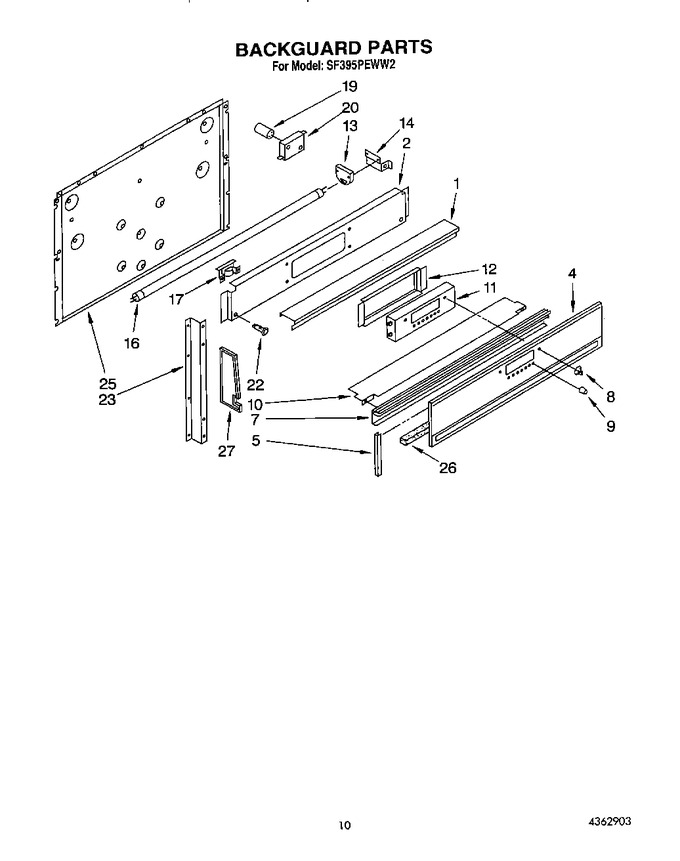

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786439		Nut, Hex (4)		Appelez-nous	-
1	786438		Screw (4)		Appelez-nous	-
1	4320871		Frame		Appelez-nous	-
1	786761		Screw (12)		Appelez-nous	-
1	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 786745)			Immediately	$ 9.65
1	786762		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
2	4320885		Panel, Control Mounting		Appelez-nous	-
4	4179333		Glass, Control Panel		Appelez-nous	-
5	786760		Channel, Glass		Appelez-nous	-
7	4320870		Trim, Lower		Appelez-nous	-
8	4320877		Knob, Timer (8)		Appelez-nous	-
9	4320876		Knob, Timer		Appelez-nous	-
10	4320874		Shield, Heat		Appelez-nous	-
10	4320378		Screw (2)		Appelez-nous	-
11	4320735		Erc		Appelez-nous	-
12	4320878		Bracket, Erc		Appelez-nous	-
13	786536		Socket, Fluorescent Light (2)		Appelez-nous	-
14	786702		Support, Lamp Socket (right Side)		Appelez-nous	-
14	786701		Support, Lamp Socket (left Side)		Appelez-nous	-
16	786539		Lamp, Fluorescent		Appelez-nous	-
17	786540		Ballast, 60 Hz.		Appelez-nous	-
19	786541		Starter, Fluorescent Light		Appelez-nous	-
20	786542		Socket, Starter		Appelez-nous	-
22	4179335		Light, Indicator (2)		Appelez-nous	-
23	786458		Support, Control Panel (2)		Appelez-nous	-
23	4362924		L.h.		Appelez-nous	-
23	4362925		R.h.		Appelez-nous	-
25	4315785		Plate, Rear Cover		Appelez-nous	-
26	4315797		Insulation, Backguard		Appelez-nous	-
27	4320872		End Cap (2) (r.h.)		Appelez-nous	-
27	4320873		End Cap (2) (l.h.)		Appelez-nous	-
	LIT4362903		List, Repair Parts		Appelez-nous	-
	LIT786302		Guide, Cooking		Appelez-nous	-
	LIT4315709		Instuctions, Installation		Appelez-nous	-
	LIT4315708		Guide, Use & Care		Appelez-nous	-
