02 - Internal Oven
03 - External Oven

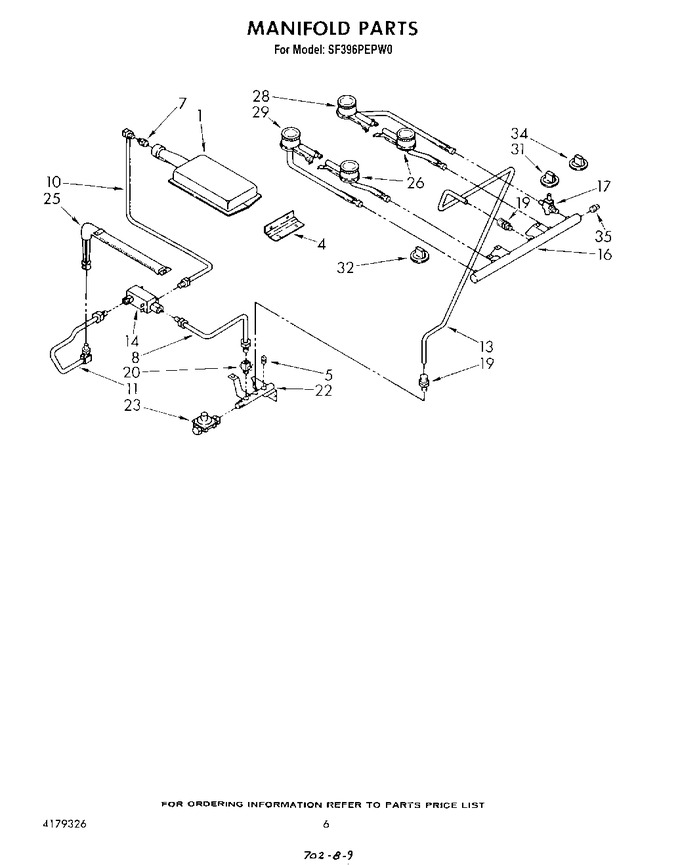

04 - Manifold
05 - Oven Electrical
06 - Oven Door And Drawer
07 - Backguard , Literature
08 - Cook Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4179233 | Burner, Ultra Ray Broiler |
|
- | |||||
| 1 | 786753 | Nut, 6-32 (6) |
|
- | |||||
| 4 | 4179235 | Bracket, Burner Mounting |
|
- | |||||
| 5 | W10295523 | Pipe Plug, 1/8 Npt (Replaces: 786545) |
|
- | |||||
| 7 | 786308 | Spud, Orifice (natural Gas No. 50) |
|
- | |||||
| 7 | 786309 | Spud, Orifice (lp Gas No. 58) |
|
- | |||||
| 8 | 786547 | Tubing (inlet To Gas Valve) |
|
- | |||||
| 10 | 786741 | Nut, Lock |
|
- | |||||
| 10 | 786548 | Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner) |
|
- | |||||
| 11 | 786741 | Nut, Lock |
|
- | |||||
| 11 | 786549 | Hood & Tubing Assembly (gas Valve To Lower Oven Burner) |
|
- | |||||
| 13 | 786550 | Tubing (inlet To Manifold) |
|
- | |||||
| 14 | 786310 | Valve, Dual Gas Valve |
|
- | |||||
| 16 | 786554 | Manifold |
|
- | |||||
| 17 | 786311 | Valve, Top Burner (tri-set) (4) |
|
- | |||||
| 19 | 786556 | Fitting (2) |
|
- | |||||
| 20 | 786312 | Valve, Shut-off |
|
- | |||||
| 22 | 786557 | Inlet, Gas |
|
- | |||||
| 23 | 786313 | Regulator, Pressure |
|
- | |||||
| 25 | 786314 | Oven Burner, Lower |
|
- | |||||
| 26 | 786315 | Top Burner, Front (2) |
|
- | |||||
| 28 | 786316 | Top Burner, R.r. |
|
- | |||||
| 29 | 786317 | Top Burner, L.r. |
|
- | |||||
| 31 | 786559 | Knob, Top Burner (4) |
|
- | |||||
| 32 | 4179070 | Knob, Oven Control |
|
- | |||||
| 34 | 786562 | Knob, Selector |
|
- | |||||
| 35 | 786665 | Plug, Pipe 3/8 Npt |
|
- |
