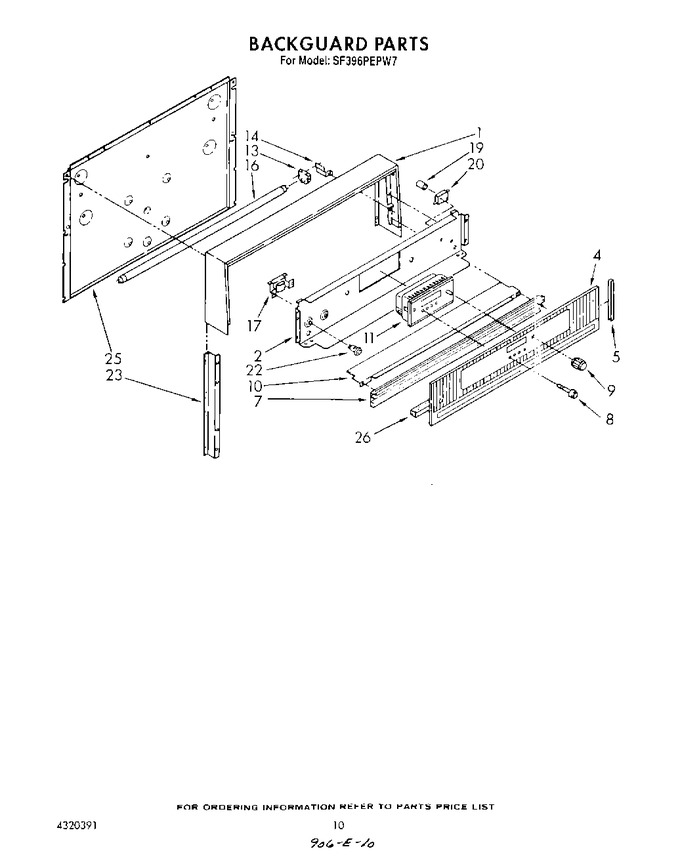

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786438		Screw (4)		Appelez-nous	-
1	786439		Nut, Hex (4)		Appelez-nous	-
1	786452		Frame		Appelez-nous	-
1	786761		Screw (12)		Appelez-nous	-
1	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 786745)			Immediately	$ 9.65
1	786762		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
2	4179332		Panel, Control Mounting		Appelez-nous	-
4	4179333		Glass, Control Panel		Appelez-nous	-
5	786760		Channel, Glass		Appelez-nous	-
7	786695		Trim, Lower		Appelez-nous	-
8	4320379		Knob, Timer (4)		Appelez-nous	-
9	4314999		Knob, Timer		Appelez-nous	-
10	4320378		Screw (2)		Appelez-nous	-
10	4315791		Shield, Heat		Appelez-nous	-
11	4315487		Clock (includes Knobs)		Appelez-nous	-
13	786536		Socket, Fluorescent Light (2)		Appelez-nous	-
14	786702		Support, Lamp Socket (right Side)		Appelez-nous	-
14	786701		Support, Lamp Socket (left Side)		Appelez-nous	-
16	786539		Lamp, Fluorescent		Appelez-nous	-
17	786540		Ballast, 60 Hz.		Appelez-nous	-
19	786541		Starter, Fluorescent Light		Appelez-nous	-
20	786542		Socket, Starter		Appelez-nous	-
22	786433		Light, Indicator (2)		Appelez-nous	-
23	786458		Support, Control Panel (2)		Appelez-nous	-
23	4315796		L.h.		Appelez-nous	-
23	4315795		R.h.		Appelez-nous	-
25	4315785		Plate, Rear Cover		Appelez-nous	-
26	4314797		Insulation, Backguard		Appelez-nous	-
	LIT4320391		List, Repair Parts		Appelez-nous	-
	LIT786302		Guide, Cooking		Appelez-nous	-
	LIT4179228		Instructions, Installation		Appelez-nous	-
	LIT4179127		Guide, Use & Care		Appelez-nous	-
	LIT4315756		Anti-tip Kit		Appelez-nous	-
