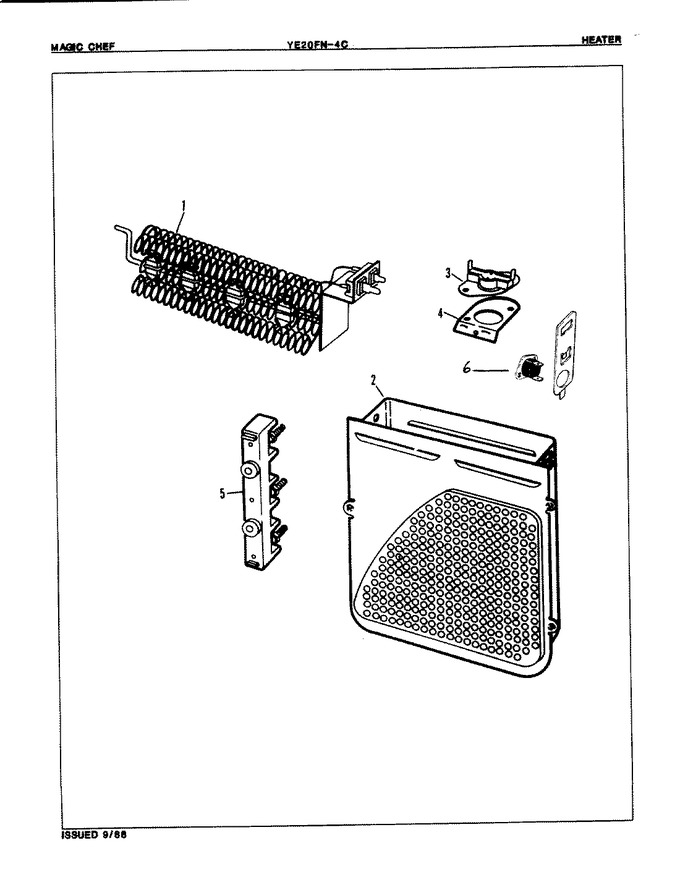

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400074		Screw   (Replaces: 25-7863)				$ 6.47
1	LA-1044		Heater Element   (Replaces: 53-0920)			Immediately	$ 51.91
2	25-7819		Screw No.8-18x1/2 Pan Hd		Appelez-nous	-
2	53-1232		Heater Housing Assembly	B	Appelez-nous	-
2	53-0191		Htr Housing Asm		Appelez-nous	-
3	WP53-0771		Thermostat, Hi-limit   (Replaces: 53-0771)				$ 110.87
3	25-3083		Screw		Appelez-nous	-
4	53-0285		Bracket, Thermostat		Appelez-nous	-
4	53-1181		Bracket, Thermal Fuse	B	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-7741)			Immediately	$ 7.04
5	WP112432		Nut (no.10-32)   (Replaces: 25-0027)				$ 7.16
5	WP3400074		Screw   (Replaces: 25-7803)				$ 6.47
5	25-6124		Nut		Appelez-nous	-
5	25-3123		Washer, Cup		Appelez-nous	-
5	25-3122		Washer, Flat		Appelez-nous	-
5	53-0166		Terminal Block		Appelez-nous	-
6	WP53-1182		Fuse, Thermal   (Replaces: 53-1182)	B			$ 55.53
