SELECT A DIAGRAM

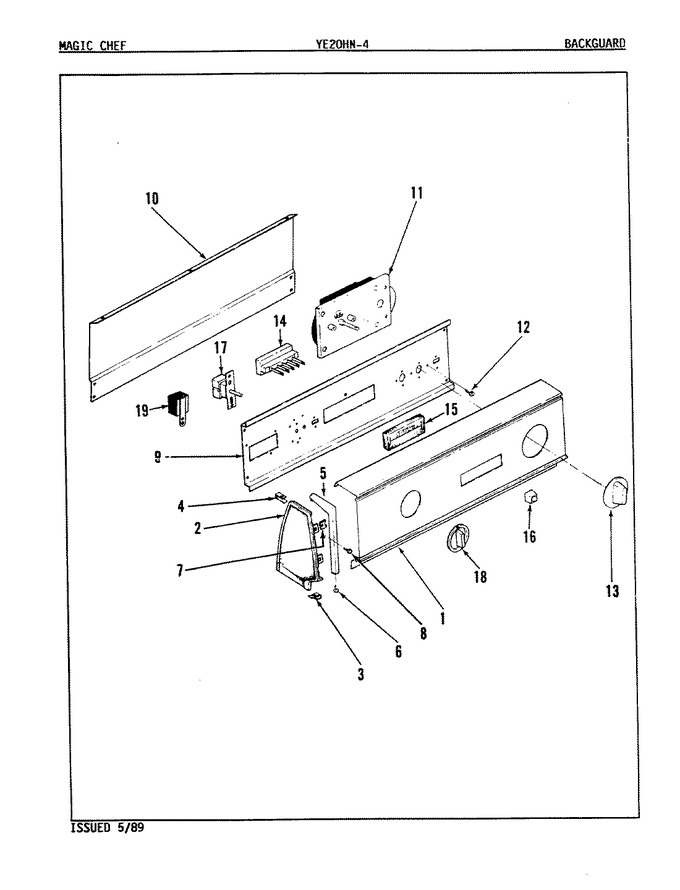

01 - Control Panel


02 - Cylinder & Drive


03 - Exterior


04 - Heater


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1275		Control Panel		Appelez-nous	-
2	25-7649		Screw		Appelez-nous	-
2	53-0264		Rh Endcap		Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
5	53-0277		Trim, End Cap (rt)		Appelez-nous	-
5	53-0278		Trim, End Cap (lt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-0323		Control Shield		Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
10	53-0268		Rear Shield		Appelez-nous	-
11	53-1300		Timer		Appelez-nous	-
11	63-6743		Resistor Assy.		Appelez-nous	-
12	25-0205		Screw		Appelez-nous	-
12	63-5685		Timer Motor		Appelez-nous	-
13	53-1529		Timer Knob & Skirt Assy		Appelez-nous	-
14	33-6621		Bracket, Switch		Appelez-nous	-
14	53-1296		Switch		Appelez-nous	-
14	25-7712		Screw		Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
15	33-8541		Switch Pad		Appelez-nous	-
16	35-0385		Pushbutton		Appelez-nous	-
17	53-0346		Switch, Wrinkle Out		Appelez-nous	-
17	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
18	35-2185		Knob, Selector (blk)		Appelez-nous	-
19	53-1040		Manual, Use & Care		Appelez-nous	-
19	63-6731		Buzzer		Appelez-nous	-
19	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
