SELECT A DIAGRAM

02 - Oven, Literature

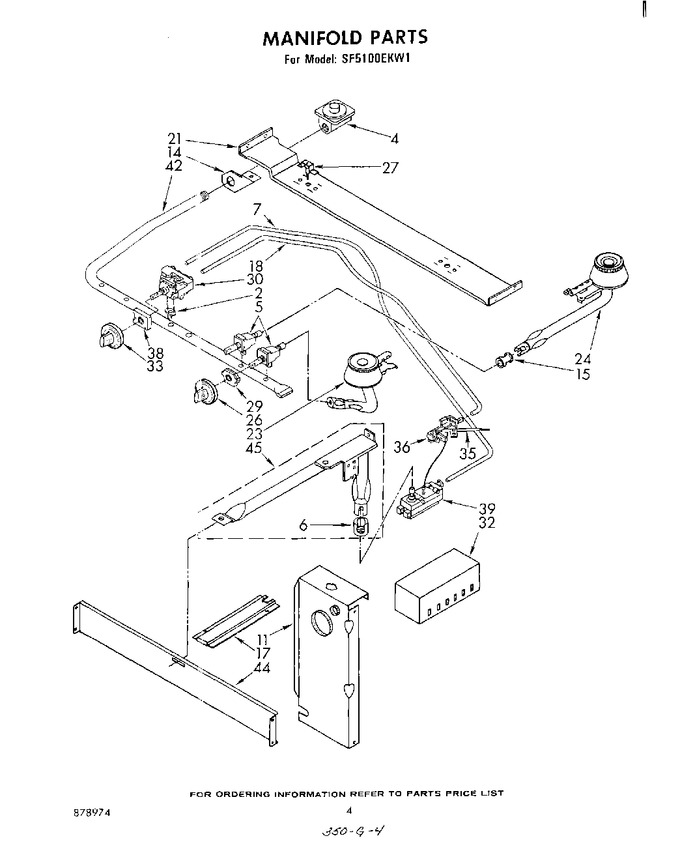

03 - Manifold


04 - Door


05 - Cooktop


06 - Background


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	878308		Fitting Flange		Appelez-nous	-
4	878008		Regulator, Pressure		Appelez-nous	-
5	878312		Valve, Top Burner (4)		Appelez-nous	-
6	878102		Shutter, Oven Burner Air		Appelez-nous	-
7	878716		Tubing, Oven		Appelez-nous	-
11	878545		Bracket, Wire		Appelez-nous	-
14	878115		Support, Inlet Pipe		Appelez-nous	-
15	878116		Cap, Top Burner Air Mixer (4)		Appelez-nous	-
17	878118		Raceway Wire		Appelez-nous	-
18	878119		Tubing, Control/pilot		Appelez-nous	-
21	878549		Hanger, Top Burner		Appelez-nous	-
23	878130		Burner, Top Front (2) (includes Illus. 15)		Appelez-nous	-
24	878131		Burner, Top Rear (2) (includes Illus. 15)		Appelez-nous	-
26	878335		Handle, Top Valve (4)		Appelez-nous	-
27	878153		Ignitor, Top Burner (right Side)		Appelez-nous	-
27	878868		Ignitor, Top Burner (left Side)		Appelez-nous	-
29	878752		Switch, Top Ignitor (4)		Appelez-nous	-
30	878338		Control, Oven		Appelez-nous	-
32	878006		Control, Ignitor		Appelez-nous	-
33	878158		Dial, Oven Control		Appelez-nous	-
35	878753		Ignitor, Oven Burner		Appelez-nous	-
36	878160		Lighter, Oven Burner		Appelez-nous	-
38	WP878009		Switch, Oven Ignitor   (Replaces: 878009)				$ 103.38
39	878011		Valve, Oven Light Safety		Appelez-nous	-
42	878882		Pipe, Manifold		Appelez-nous	-
44	878596		Deflector, Heat		Appelez-nous	-
45	878187		Burner, Oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
