02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

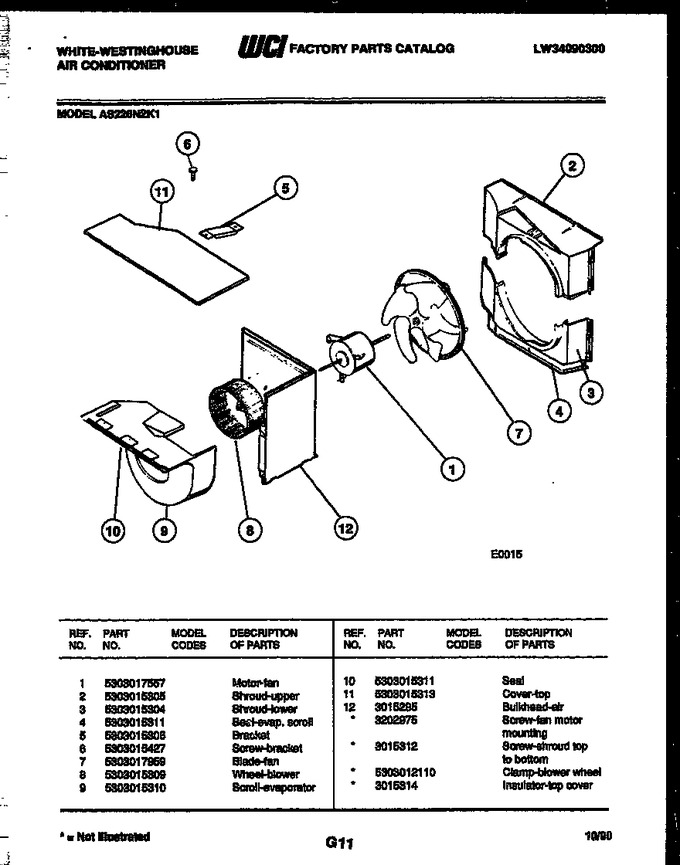

| 1 | 5303017557 | Motor - Fan |
|
- | |||||
| 2 | 5303015305 | Shroud - Upper |
|
- | |||||
| 3 | 5303015304 | Shroud - Lower |
|
- | |||||
| 4 | 5303015311 | Seal-evap. Scroll |
|
- | |||||
| 5 | 5303015306 | Bracket |
|
- | |||||
| 6 | 5303015427 | Screw-bracket |
|
- | |||||
| 7 | 5303017959 | Blade-fan |
|
- | |||||
| 8 | 5303015309 | Wheel-blower |
|
- | |||||
| 9 | 5303015310 | Scroll-evaporator |
|
- | |||||
| 10 | 5303015311 | Seal |
|
- | |||||
| 11 | 5303015313 | Cover - Top |
|
- | |||||
| 12 | 3015295 | Bulkhead - Air |
|
- | |||||
| *34141 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| *34141 | 3015312 | Screw-shroud Top To Bottom |
|
- | |||||
| *34141 | 3015314 | Insulator Top Cover |
|
- | |||||
| *34141 | 3202975 | Screw-fan Motor Mounting |
|
- |
