SELECT A DIAGRAM

02 - Oven , Literature And Optional


03 - Manifold


04 - Door


05 - Backguard

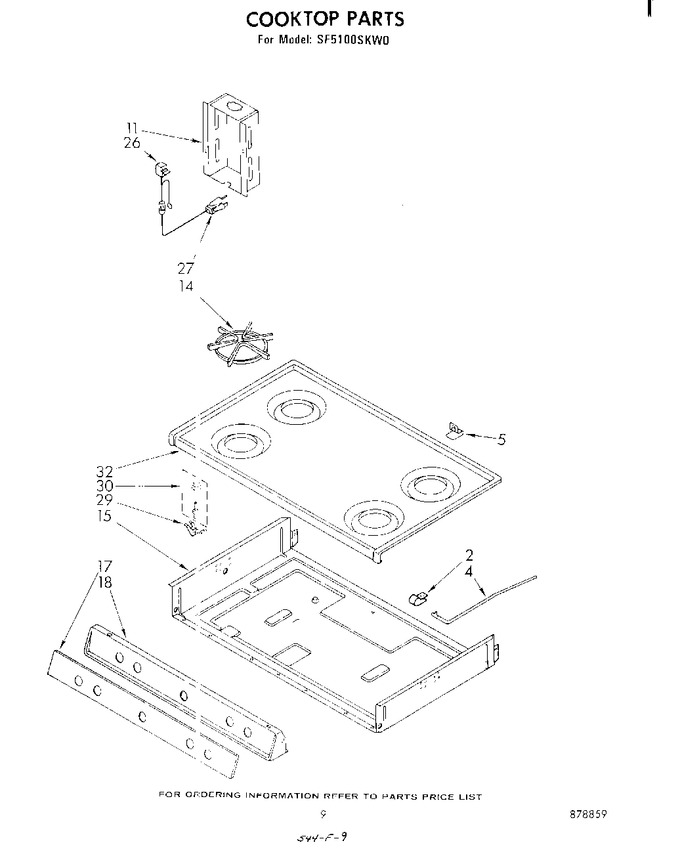

06 - Cook Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	878083		Clamp, Top Stop		Appelez-nous	-
4	878098		Stop, Cook Top		Appelez-nous	-
5	878099		Spacer, Main Top		Appelez-nous	-
11	878719		Cover, Wire		Appelez-nous	-
14	878150		Grate, Burner (4)		Appelez-nous	-
15	878548		Bottom, Burner Box		Appelez-nous	-
17	878722		Inlay, Manifold Panel		Appelez-nous	-
18	878724		Panel, Manifold (coffee)		Appelez-nous	-
18	878726		Panel, Manifold (harvest Gold)		Appelez-nous	-
18	878725		Panel, Manifold (white)		Appelez-nous	-
18	879108		Panel, Manifold (platinum)		Appelez-nous	-
18	879107		Panel, Manifold (toast)		Appelez-nous	-
18	878723		Panel, Manifold (almond)		Appelez-nous	-
26	878162		Block, Disconnect Socket		Appelez-nous	-
27	878298		Cord, Extension		Appelez-nous	-
29	878164		Catch, Main Top (2)		Appelez-nous	-
30	878499		Strike, Main Top (2)		Appelez-nous	-
32	879110		Top, Main (platinum)		Appelez-nous	-
32	878735		Top, Main (harvest Gold)		Appelez-nous	-
32	879109		Top, Main (toast)		Appelez-nous	-
32	878732		Top, Main (almond)		Appelez-nous	-
32	878733		Top, Main (coffee)		Appelez-nous	-
32	878734		Top, Main (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
